DwyerOmegaSVH-110-Series

SVH-111-NO

Name: SVH-111-NO
Brand: DwyerOmega
SKU: SVH-111-NO

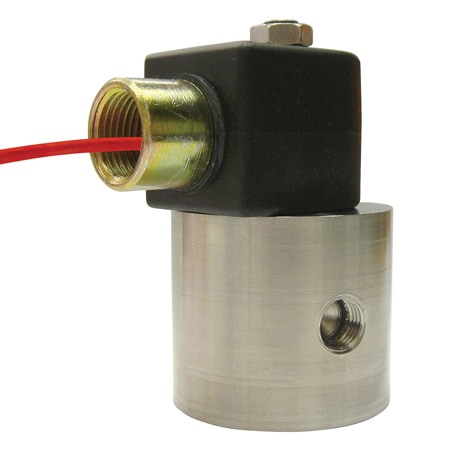

High Pressure Solenoid Valve

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Coil Power:120 Vac/22 W

Cv Factor:0.005 gal/min

Duty Cycle:100%

Electrical Connection:1/2 in NPT female Conduit with Wire Leads

Electrical Connection Note:1/2 NPT, 457 mm (18") leads

Enclosure Ratings:NEMA Type 4, NEMA Type 7

Materials:316 Stainless Steel, FEP, 303 Stainless Steel, 302 Stainless Steel, 430 Stainless Steel

Materials, Wetted:303 Stainless Steel, 316 Stainless Steel, 430 Stainless Steel, FEP

Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water

Media Type:N/A

Operating Pressure, Max:10000 psi

Orifice Size:N/A

Process Connection Size:1/4 in

Process Connection Type:NPT Male

Process Temperature, Max:204 °C

Process Temperature, Min:-212 °C

Valve Position:Normally Open

Valve Type:Direct Acting

Weight:48 oz
