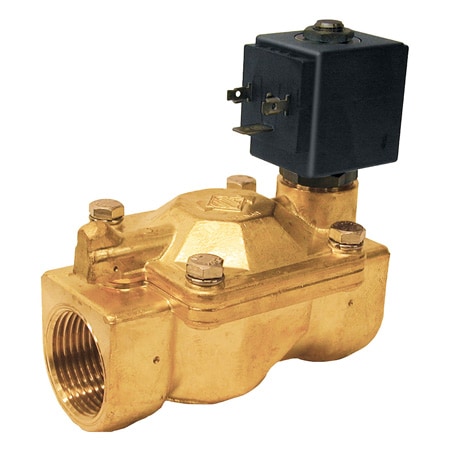

DwyerOmegaSV6100A-Series
SV6104A
LEAD-FREE BRASS 2-Way Solenoid Valves
- 가격
- 724,320 원
- VAT 10%
- 72,432 원
- 총 금액
- 796,752 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Close Response Time:100 to 4000 ms
Coil Molding Material:Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24DC/60HZ, SV8COIL-220AC Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC (Class H): SV8COIL-115/60HZ
Coil Power:8 W
Cv Factor:9.8 gal/min
Cycling Rate:10 to 50 cpm
Duty Cycle:100%
Materials:Brass, EPDM
Materials, Wetted:Brass, Copper, EPDM, Stainless Steel
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Media Type:N/A
Mounting:Any (preferably with solenoid system upright)
Open Response Time:200 to 500 ms
Operating Pressure Note:AC 230 psi, DC 230 psi
Operating Pressure, Max:230 psi
Operating Pressure, Min:2 psi
Orifice Size:N/A
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature, Max:137 °C
Process Temperature, Min:-10 °C
Supply Voltage:120 Vac
Valve Position:Normally Closed
Valve Type:Pilot Operated
Voltage Tolerance:±10%
