DwyerOmegaSV4100-SV4300-Series
SV4304

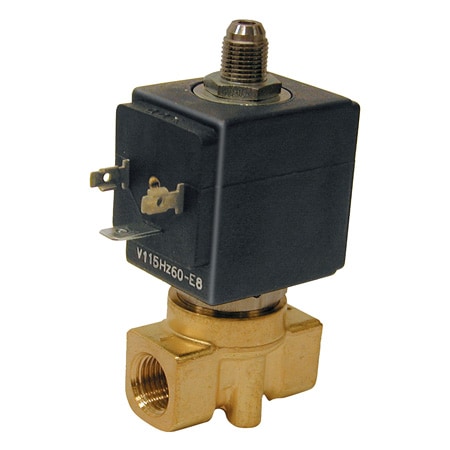

OMEGA-FLO™ 3-Way Direct Acting Solenoid Valves
- 가격
- 275,920 원
- VAT 10%
- 27,592 원
- 총 금액
- 303,512 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 5 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Close Response Time:8 to 15 ms
Coil Molding Material:Black Polyester (Class F): SV8COIL-115AC, SV8COIL-24AC/60HZ, SV8COIL-220AC Black Polyamide (Class F): SV8COIL-12DC, SV8COIL-24DC Black Polyphenylensulphide (Class H): SV8COIL-115/60HZ
Coil Power:8 W
Cv Factor:0.22 gal/min
Cycling Rate:1000 cpm
Duty Cycle:100%
Enclosure Ratings:NEMA Type 4
Exhaust Orifice Size:3/32 in
Materials:Brass, FKM, Stainless Steel 300, Stainless Steel 400, Copper
Materials, Wetted:Brass, Copper, FKM, Stainless Steel
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Media Type:N/A
Mounting:Any (preferably with solenoid system upright)
Open Response Time:8 to 15 ms
Operating Pressure Note:AC 85 psi, DC 85 psi
Operating Pressure, Max:85 psi
Operating Pressure, Min:0 psi
Orifice Size:3/32 in
Process Connection Size:1/8 in
Process Connection Type:BSPP Male
Process Temperature, Max:137 °C
Process Temperature, Min:-10 °C
Supply Voltage:120 Vac
Valve Position:Normally Closed
Valve Type:Direct Acting
Voltage Tolerance:±10%
