DwyerOmegaSV240-Thru-SV270-Series
SV261

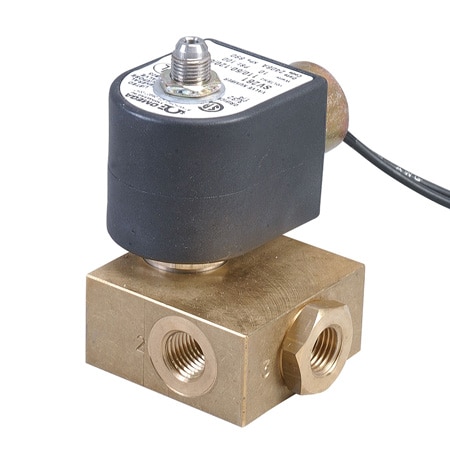

3-Way Solenoid Valve and 4-Way Solenoid Valves - Selectable Purpose, General Purpose and Air
- 가격
- 926,710 원
- VAT 10%
- 92,671 원
- 총 금액
- 1,019,381 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Quick Exhaust
Close Response Time:45 ms
Coil Power:10 W
Cv Factor:0.20 , 1.1 gal/min
Duty Cycle:100%
Enclosure Ratings:IP65, NEMA Type 4
Materials:Brass, Nitrile Rubber
Materials, Wetted:Brass, Buna-N (NBR), Copper, Stainless Steel
Media Compatibility:Air
Media Type:N/A
Mounting:Pipe mounting, any direction
Open Response Time:15 ms
Operating Pressure, Max:100 psi
Operating Pressure, Min:2 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:-9 °C
Orifice Size:3/32 in, 1/4 in
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Process Temperature, Max:85 °C
Static Pressure:5 times max psid
Supply Power Note:10 W, 120 Vac coils, 50 to 60 Hz
Supply Voltage:120 Vac
Valve Position:Normally Closed
Valve Type:Pilot Operated
