DwyerOmegaSV170-Series
SV171

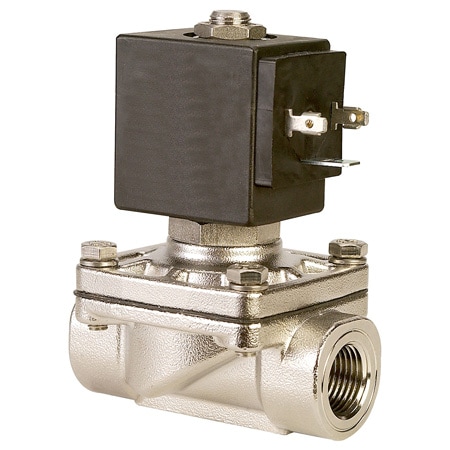

OMEGA-FLO 2-Way 316 Stainless Steel Solenoid Valve
- 가격
- 843,630 원
- VAT 10%
- 84,363 원
- 총 금액
- 927,993 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Close Response Time:200 to 1200 ms
Coil Molding Material:Black Polyphenylensulphide
Coil Power:8 W
Cv Factor:2.8 gal/min
Cycling Rate:60 cpm
Duty Cycle:100%
Enclosure Ratings:NEMA Type 4
Materials:316 Stainless Steel, FKM, Stainless Steel 300, Stainless Steel 400, Gold-Plated Copper
Materials, Wetted:316 Stainless Steel, Copper, FKM
Media Compatibility:Hot Water, Steam
Media Type:N/A
Mounting:Any (preferably with solenoid system upright)
Open Response Time:100 to 200 ms
Operating Pressure, Max:200 psi
Operating Pressure, Min:0 psi
Orifice Size:9/16 in
Process Connection Size:3/8 in
Process Connection Type:NPT Male
Process Temperature, Max:138 °C
Process Temperature, Min:-10 °C
Supply Power Note:8 W, 110 to 120 Vac, 50 to 60 Hz
Supply Voltage:120 Vac
Valve Position:Normally Closed
Valve Type:Direct Acting
Voltage Tolerance:±10%
