DwyerOmegaSV100-SV200-Series
SV124

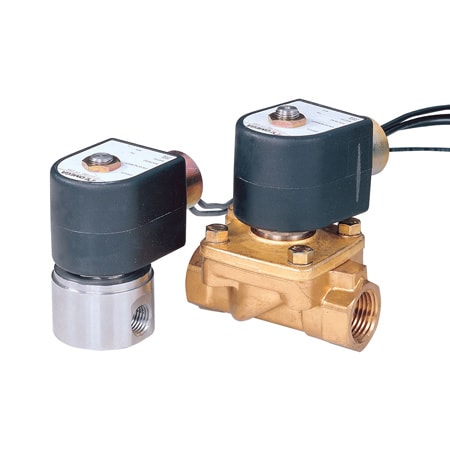

General Purpose 2-Way Solenoid Valves - NEMA-4, Stainless Steel and Brass
- 가격
- 321,220 원
- VAT 10%
- 32,122 원
- 총 금액
- 353,342 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Close Response Time:4 to 15 ms
Coil Power:10 W
Cv Factor:0.18 gal/min
Duty Cycle:100%
Enclosure Ratings:IP65, NEMA Type 4
Materials:Stainless Steel, FKM
Materials, Wetted:Copper, FKM, Stainless Steel
Media Compatibility:Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
Media Type:N/A
Mounting:Pipe mounting, any direction
Open Response Time:4 to 15 ms
Operating Pressure, Max:275 psi
Operating Pressure, Min:0 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:-9 °C
Orifice Size:3/32 in
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Process Temperature, Max:116 °C
Static Pressure:1.5 times max psid
Supply Power Note:10 W, 120 Vac coils, 50 to 60 Hz
Supply Voltage:120 Vac
Valve Position:Normally Closed
Valve Type:Direct Acting
Weight:500 g
