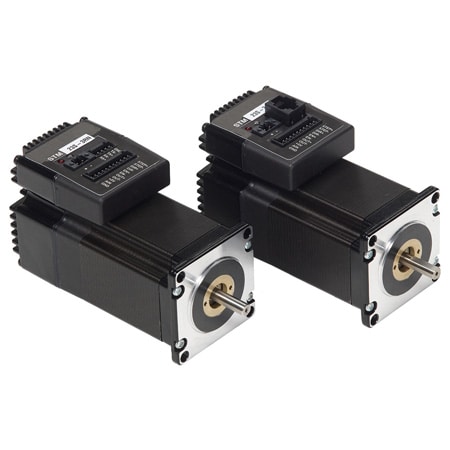

STM17Q-3RE
Integrated Stepper Drives/Motors with Advanced Features and Control Options
- 가격
- 1,623,300 원
- VAT 10%
- 162,330 원
- 총 금액
- 1,785,630 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Integrated Driver, Stand Alone Programming
Amplifier Type:Dual H-Bridge, 4 Quadrant
Construction Type:Built-in Encoder
Control Interfaces & Operating Modes:Analog Input Voltage: 0 to 5 Vdc; Analog Input Resolution: 12 bits; Current Control: 4 state PWM at 20 kHz; Step and Direction Inputs: STEP ±: Optically isolated, 5 to 24V; minimum pulse width : 250 ns; maximum pulse frequency : 3 MHz; function: step, CW step, A quadrature, encoder following, CW limit, CW jog, start/stop (oscillator mode), general purpose input DIR ±: Optically isolated, 5 to 24V; minimum pulse width : 250 ns; maximum pulse frequency : 3 MHz; function: DIR, CCW step, B quadrature, encoder following, CCW limit, CCW jog, sensor, DIR (oscillator mode), general purpose input; Enable Inputs: EN ±: Optically isolated, 5 to 24V; minimum pulse width : 250 ns; maximum pulse frequency : 3 MHz; function: enable, reset, speed 1/speed 2 (oscillator mode), general purpose input Adjustable bandwidth digital noise rejection filter on all inputs
Control Mode:None
Data Interface:RS232, RS485
Form factor:NEMA 17
Functions:Fault, motion, tach or general purpose programmable
Holding Torque:85 oz-in
Mechanical Form-Factor & Load Capacity:Rotor Inertia: 0.0037 oz-inch²
Motion Precision & Smoothness:Microstep Resolution: Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev; Anti-Resonance: Raises the system damping ratio to eliminate midrange instability and allow stable operation throughout the speed range and improves settling time; Torque Ripple Smoothing: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 rps; Microstep Emulation: Performs high resolution stepping by synthesizing fine microsteps from coarse steps (step and direction mode only); Command Signal Smoothing: Software configurable filtering reduces jerk and excitation of extraneous system resonances (step and direction mode only)
Operating Temperature, Max:50 °C
Operating Temperature, Min:-20 °C
Output Detail:Optically isolated, 24V, 40 mA max NPN/sinking
Process Temperature Note:0 to 40°C (32 to 104°F) (mounted to suitable heatsink)
Process Temperature, Max:40 °C
Process Temperature, Min:0 °C
Protection:Over-voltage, undervoltage, over-temp, motor/wiring shorts (phase-to-phase, phase-to-ground)
Relative Humidity:90 % non-condensing
Smart Tuning & Diagnostics:Auto Set-Up: Measures motor parameters and configures motor current control and anti-resonance gain settings; Self Test: Checks internal and external power supply voltages; diagnoses open motor phases and motor resistance changes >40%; detects encoder wiring and signal faults (differential encoder only); Non-Volatile Storage: Programs, data and drive configuration are saved in FLASH and EEPROM memory; Idle Current Reduction: Reduction range of 0 to 90% of running current after delay selectable in milliseconds
Supply Power Note:External 12 to 70 Vdc power supply required
Supply Voltage:12 to 70Vdc
