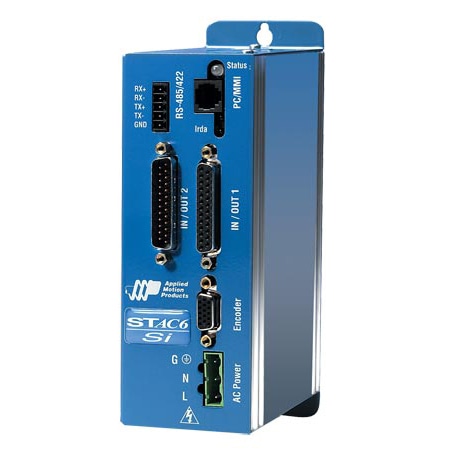

DwyerOmegaSTAC6-Srs-Stepper-Drives

STAC6-SI

판매 가격: 가격 문의

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Brand:OMEGA Engineering

Additional Features 2:Si Programmer™ software.

Amplifier Type:MOSFET, Dual H-Bridge, 4 Quadrant

Control Characteristics:Non-Volatile Storage: Configurations are stored in FLASH memory Step and Direction Inputs: Optically Isolated: 5 to 12V; minimum pulse width = 200 ns; maximum pulse frequency = 2 MHz Speed Range: Depends upon selected resolution; amplifier is suitable for speeds up to 133 rps Resolution: Software selectable from 200 to 51,200 steps/rev in increments of 1 step/rev Encoder Option: Differential line receivers suitable for 200 KHz or greater

Control Interfaces & Operating Modes:Step and Direction Inputs: Optically Isolated: 5 to 12V; minimum pulse width = 200 ns; maximum pulse frequency = 2 MHz; Digital Inputs: 15 Digital Inputs: Two 5V, Thirteen 12 to 24 V; Digital Output: 7 Digital Outputs: 30V; Motor Regeneration: Built-in regeneration circuit (25 W max);Current Control: 4 state PWM at 20 KHz

Control Mode:Step and Direction, Velocity, Streaming Commands, Analog Input

Current Rating:0.5 to 6.0 A in 0.01 A increments

Data Interface:RS232, RS485

Driver Current:0.5 to 6 A/Phase

Input Voltage:5 to 12 V

Motion Precision & Smoothness:Speed Range: Depends upon selected resolution; amplifier is suitable for speeds up to 133 rps

Number of Inputs:15

Number of Outputs:7

Operating Temperature, Max:55 °C

Operating Temperature, Min:0 °C

Process Connection:N/A

Protection:Over voltage, under voltage, over-temp, external output shorts (phase-to-phase, phase-to-ground), internal amplifier shorts
