DwyerOmegaSeries-ST80
ST80-40C0060F10FA10000-1

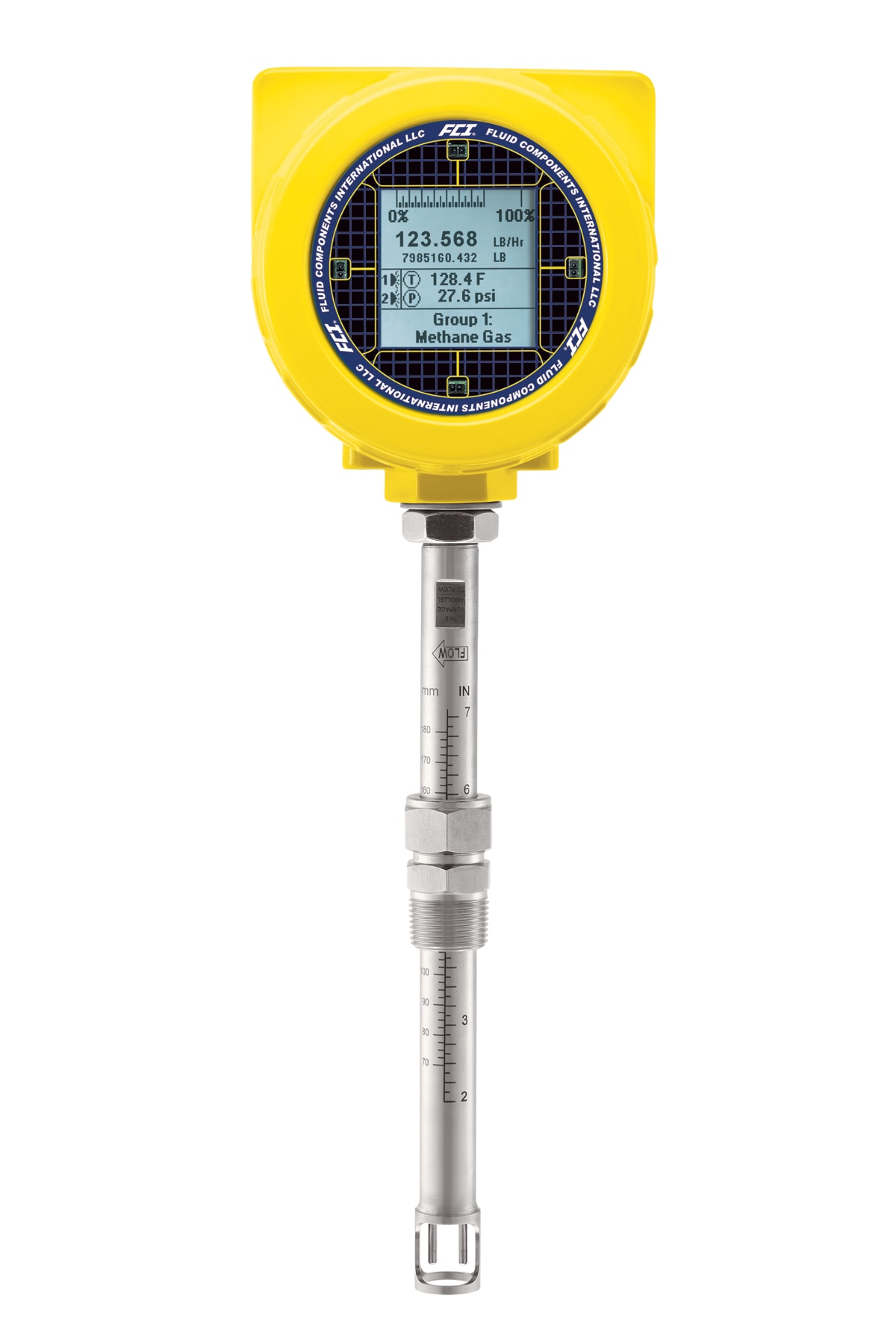

ST80 Insertion Natural Gas Flow Meter for 2.5" to 10" lines, 3/4 inch NPT fitting, variable insertion length, LCD display with bar graph, dual 4 to 20 mA outputs. Heavy-duty design for industrial gas flow monitoring.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Data Interface:HART, Modbus
Display Note:Built-In-Display,Large 2"x 2" [50 mm x 50 mm] LCD; digital plus bar graph and engineering units
Display Type:LCD
Electrical Connection:Integral mount with Four 1/2" NPT or M20x1.5 conduit ports
Electrical Output:Dual 4 to 20 mA
Element Material Note:316L Stainless Steel
Flow Direction:Left-to-Right
Flow Element Style:FP-Style
Housing Material:Aluminum
Insertion Length:6 in
Insertion Length Note:Variable insertion length - 1" to 6 "
Linear Flow Rate, Max:1000 ft/s
Linear Flow Rate, Min:0.25 ft/s
Operating Pressure, Max:150 psi
Process Connection Note:compression fitting with Teflon ferrule
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature, Max:350 °F
Process Temperature, Min:-40 °F
Repeatability:± 0.5% of reading
Series ID:Series-ST80
Supply Power Type:DC
Supply Voltage:24 Vdc
Temperature Compensation:± 30 °F [± 16 °C]
Turndown Ratio:2:1 to 100:1
