DwyerOmegaSeries-SSV-S

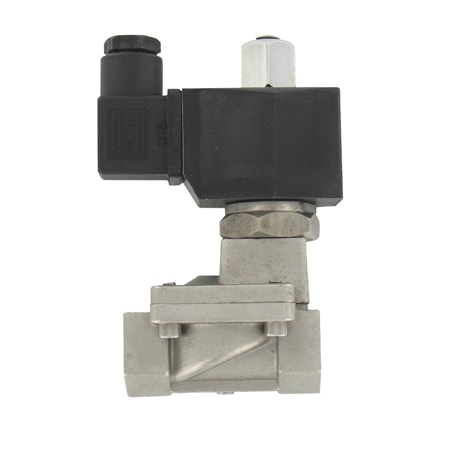

SSV-S1F4
2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VDC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 24 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Fluid Measurement and Control, Industrial and Manufacturing
Compliance:CE
Cv Factor:0.25 gal/min
Electrical Connection:DIN 43650 A (solenoid valve)
Enclosure Ratings:IP54, NEMA Type 13
Materials:Nylon
Materials, Wetted:Fluoroelastomer, Stainless Steel
Media Compatibility:Consult Factory
Mounting Orientation:None
Operating Pressure Range:0 to 87 psi
Operating Temperature, Max:149 °F
Operating Temperature, Min:32 °F
Orifice Size:0.12 in
Power Consumption:Inrush: 82 VA, Holding: 33 VA
Pressure Limits:Up to 174 psi
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Supply Power Type:DC
Supply Voltage:24 Vdc
Type of Operation:Normally Open
Weight:0.88 lb
