DwyerOmegaSRTD-1-SRTD-2
SRTD-1

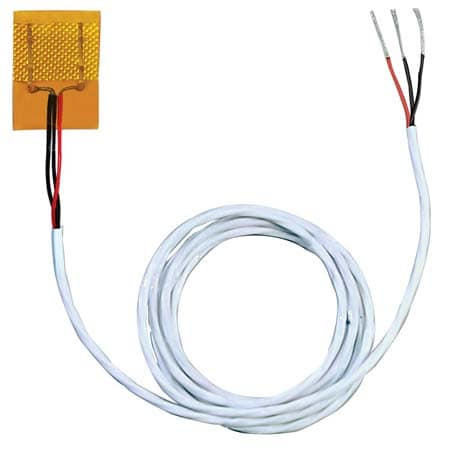

SURFACE MOUNT RTD TEMP.SENSORS
- 가격
- 870,500 원
- VAT 10%
- 87,050 원
- 총 금액
- 957,550 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Bend Radius, Min:9.5 mm
Cable Diameter:0.06 in
Cable Length:36 in
Electrical Connection:Stripped Leads
Insulation:PFA
Insulation Resistance:50 MΩ
Insulation Resistance Note:50 M Ω minimum at 50 Vdc ribbon cable. 100G Ohm minimum at 500 Vdc, round twisted cable (dry conditions at room temperature).
Mounting:DIN Platinum
Nominal Resistance:100 Ω
Number of Wires:2
Process Temperature, Max:260 °C
Process Temperature, Min:-200 °C
Response Time:<200 ms
Response Time Note:<200 milliseconds lag on metal surfaces
Self Heating Effect:0.33 °C / mW
Sensor Height:0.64 mm
Sensor Length:25 mm
Sensor Width:15.7 mm
Stability:<0.2°C
Stability Note:<0.2°C drift per year at rated service and proper mounting
Temperature Coefficient:0.00385Ω/Ω/°C
Temperature Coefficient Note:α=0.00385Ω/Ω/°C
Temperature Sensor Type:RTD
