DwyerOmegaSeries-SPPM2
SPPM2-43

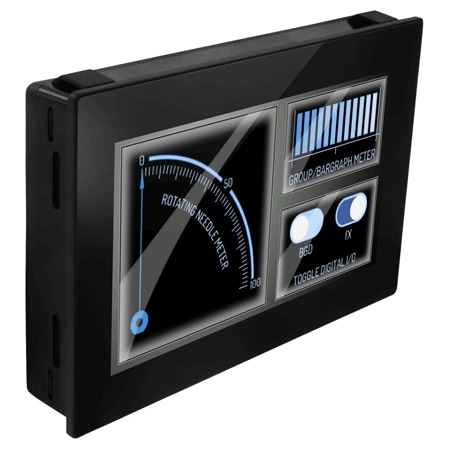

SPPM2-43 INTERFACE PANEL
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 10 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.05 % ± 0.1 mV
Applications:Pump Control, Refrigeration, Refrigeration Equipment
Compliance:CE
Current Measurement Range:4 to 20 mA
Display Note:4.3˝ (10.9 cm) TFT LCD with 262k colors
Display Resolution:480 x 272 pixels
Display Type:Color LCD
Electrical Connection:Screw Terminal, multiple DIL IDC sockets, USB mini-B
Input Type:Voltage, Current, digital I/O
Mounting:Panel Mount
Operating Temperature, Max:104 °F
Operating Temperature, Min:32 °F
Output Detail:4 Pulse Switch Modulation, 2 Open Collector Alarm
Power Consumption:400 mA
Resolution:0.04 mV, max
Resolution Note:0.04 mV (max ) or 4 Decimal Places
Sampling Rate:10 Hz (10 updates/second)
Supply Power Type:DC/USB
Supply Voltage:5 to 30 Vdc
System Requirements:Compatible with Windows® 7, Windows® 8 and Windows® 10
Voltage Measurement Range:4 x ± 40 V
Warm Up Time:15 sec
Weight:6.7 oz
