DwyerOmegaSP-003-4-Series
SP-004-1

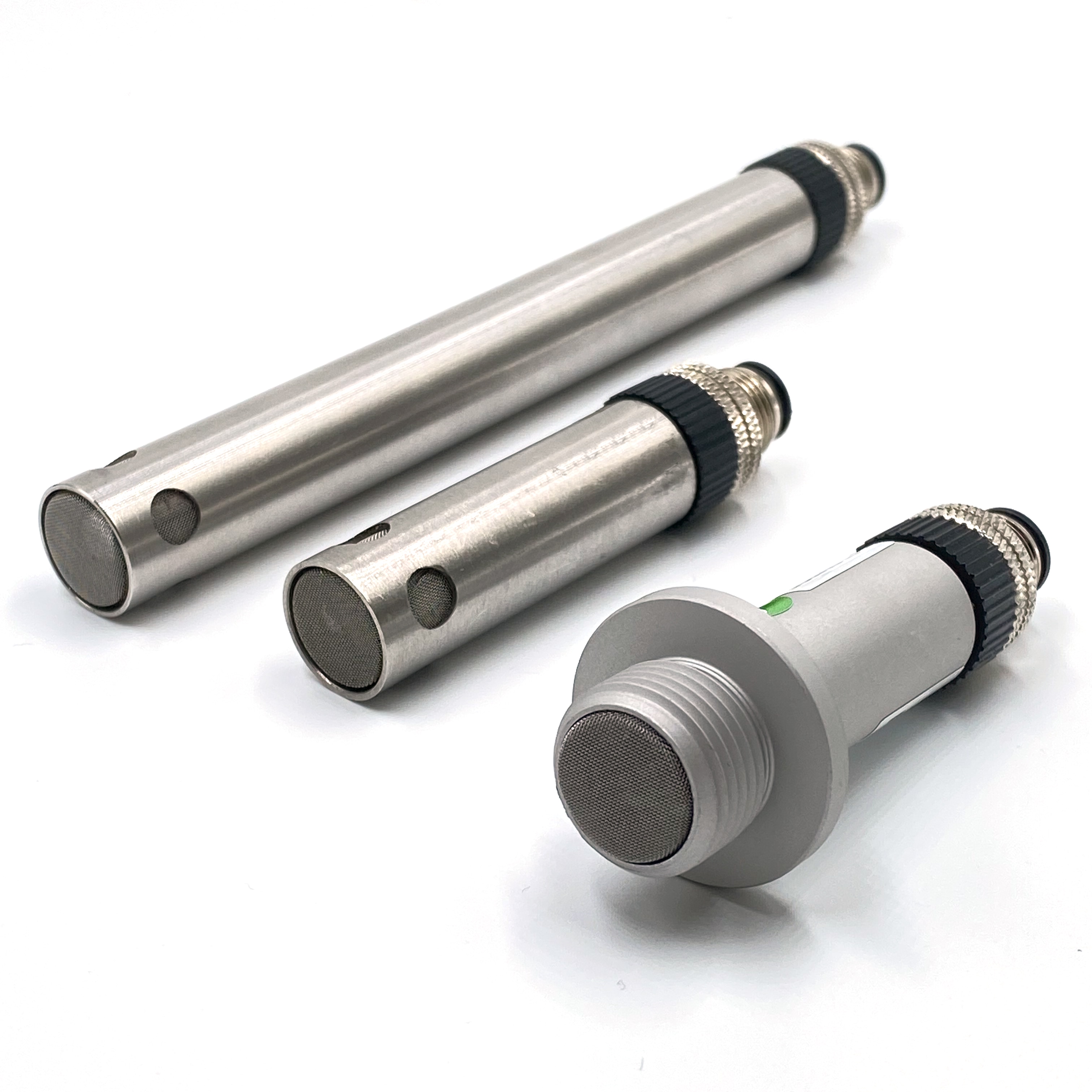

Smart Temperature and Humidity probe, Tube Housing
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 101 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.3 °C
Accuracy Detail:Relative Humidity Accuracy at 250°C :±2.5% (0 to 80%) non-condensing, ±3.5% (80 to 100%) non- condensing
Approvals:CE, UKCA
Configuration:Configurable via Omega Link Smart Interface and SYNC configuration software
Diameter:15.9 mm
Digital Input:VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Digital Output:2x Open Drain 100 mA max, VMAX = 30 VDC
Enclosure Material:Stainless Steel
Enclosure Ratings:IP67
Housing Construction:3" Tube
Hysteresis:±0.8%
Length:72 mm
Measurement Type:Temperature, Humidity
Number of I/O:2
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Process Connection Type:Internal
Process Temperature, Max:85 °C
Process Temperature, Min:-40 °C
Relative Humidity Response Time:8 sec
Repeatability:Temperature: ±0.15°C, Relative Humidity: ±0.21% RH
Software:Compatible with OEG, SYNC, and OMEGA Cloud
Supply Power Type:DC
Supply Voltage:2.8 to 3.3 Vdc
Temperature Coefficient:< 0.01°C/°C
Temperature Response Time:< 1 sec
