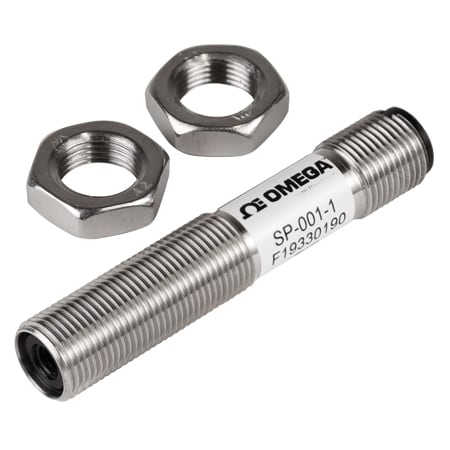

DwyerOmegaSP-001-2-Series
SP-002-0
Ultra miniature smart IR Probe
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 101 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 4 °C (± 7.2 °F)
Accuracy Detail:Temperature Accuracy @ Ambient of 0 to 50°C(32 to 122°F): 1°C (1.8°F) or 1% of reading, whichever is greater Accuracy Over Entire Ambient Operating Range: 4°C (7.2°F) or 3% of reading, whichever is greater
Approvals:CE, UKCA
Configuration:Configurable via SYNC configuration software
Diameter:12 mm
Emissivity, Max:0.01 to 1.00
Enclosure Material:Stainless Steel
Enclosure Ratings:IP67, NEMA Type 6
Field of view:10:1
Length:67 mm
Measurement Type:Temperature
Number of Channels:2
Number of I/O:0
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Process Connection Type:Internal
Process Temperature, Max:380 °C
Process Temperature, Min:-70 °C
Relative Humidity:0 to 95% RH
Repeatability:Temperature: 1°C
Repeatability Note:Temperature: 1°C (1.8°F) or 1% of reading
Software:Compatible with OEG and SYNC configuration software
Spectral Response, Max:14 µm
Spectral Response, Min:5.5 µm
Supply Power Type:DC
Supply Voltage:3.3 Vdc
Temperature Response Time:1 sec
Thread Diameter:12 mm
Thread Length:33.5 mm
Vibration:10 Gs from 10 Hz to 500 Hz
Weight:35 g
