DwyerOmegaSeries-SLD
SLD-ACY

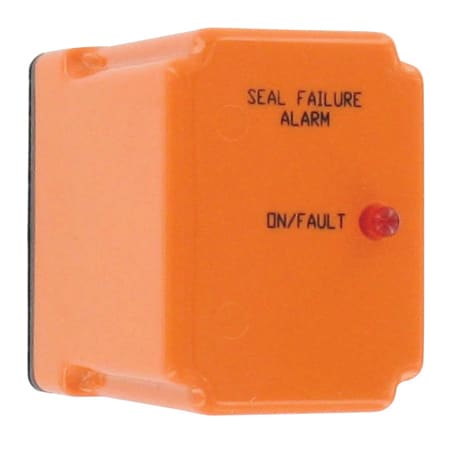

Single channel leak detection relay, 470 to 10k ohm adjustable sensitivity.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Compliance:cUR, UR
Control Mode:On/Off
Control Sensitivity:470 to 10 kΩ Adjustable
Input Type:Resistance
Isolation:2500 V
LED Indicators:Red LED Illuminates when Leak is Detected
Materials:Polycarbonate
Mounting:11-pin socket
Operating Temperature, Max:131 °F
Operating Temperature, Min:-4 °F
Power Consumption:2 VA
Response Time:Energize: 15 ms, Release: 8 ms
Sensitivity:470 to 10 kΩ Adjustable
Storage Temperature, Max:185 °F
Storage Temperature, Min:-40 °F
Supply Power Type:AC
Supply Voltage:120 Vac
Switch Activation:Falling
Switch Note:10 A @ 250 VAC resistive, 360 VA inductive
Switch Rating:10 A @ 250 Vac, 360 VA
Switch Type:DPDT
Switching Voltage:9 Vdc
Weight:8 oz
