DwyerOmegaSL-PS-Srs-DIN-Rail-P-S-
SL-PS-S4048

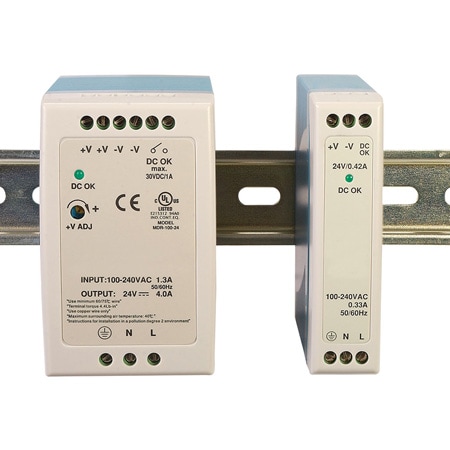

Power Supplies, Space Saving DIN Rail Mounting, 10 to 100Watt for 5, 12, 24 & 48 VDC
- 가격
- 209,630 원
- VAT 10%
- 20,963 원
- 총 금액
- 230,593 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:OK relay contact, 30V/1A resistive
Approvals:UL508, EN60950-1* approved, NEC Class 2/LPS compliant Harmonic Current: Compliance to EN61000-3-2,-15
Current Rating:0.83 A
EMC Standard:EN 50204, EN 55024, EN 61204-3A (heavy industry level), IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-6-2
Efficiency:84 to 88%
Electrical Output:48 Vdc
Frequency Input Range:47 to 63 Hz
Height:90 mm
Inrush Current:Cold start 30A/115 Vac, 60A/230 Vac
Insulation Resistance:100 M Ω
Insulation Resistance Note:I/P-O/P, I/P-FG, O/P-FG: 100 M Ω/ 500 Vdc EMI compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B
Length:100 mm
Line and Load Regulation:±1%
Noise:150 mVp-p
Operating Humidity:20 to 90% RH non-condensing
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Overload Protection:105 to 150%, 31.2 to 36V
Power Consumption:40 W
Supply Power Note:85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc
Voltage Tolerance:± 1 %
Width:40 mm
Withstand Voltage:I/P-O/P: 3k Vac; I/P-FG: 1.5k Vac ;O/P-FG: 0.5k Vac
