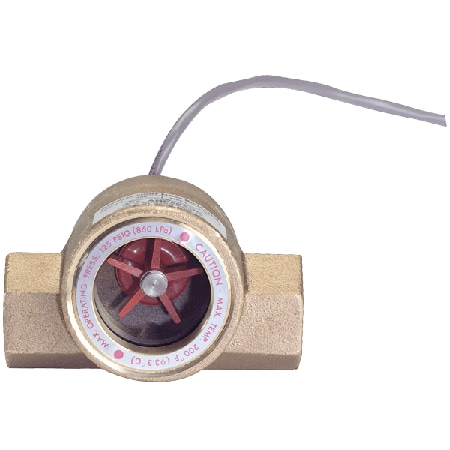

DwyerOmegaSeries-SFI-100T
SFI-100T-3/4-A711T
SFI-100T-3/4-A711T
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 5 %
Electrical Connection:Pigtail Leads
Electrical Connection Note:Black Lead: Ground; White Lead: 5 VDC Out Pulse; Green Lead: 8-28 VDC Out Pulse; Red Lead: 8-28 VDC Supply
Materials, Wetted:300 Stainless Steel, 316 Stainless Steel, Brass, Buna-N (NBR), PBT, Tempered Glass
Media Compatibility:Consult Factory
Mounting Orientation:Horizontal
Operating Temperature, Max:200 °F
Operating Temperature, Min:-20 °F
Output Detail:5 Vdc, Frequency: 0 to 100 Hz and White led: 5 VDC. Green led: 8-28 VDC equal to supply voltage. Pulsed Output with Frequency Rate Proportional to Flow Rate
Output Signal:DC Pulse
Port 1 Size:3/4 in
Port 1 Type:NPT Female
Proof Pressure:Up to 125 psi
Supply Power Type:DC
Supply Voltage:8 to 28 Vdc
Viscosity Range:200 SSU
Volumetric Flow Rate, Max:35 GPM
Volumetric Flow Rate, Min:3 GPM
Weight:1.8 lb
