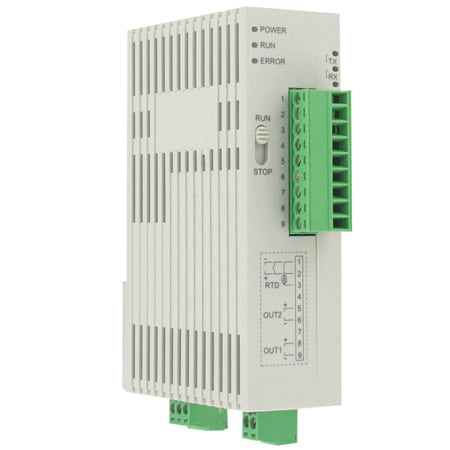

DwyerOmegaSeries-SCD
SCD-1063
DIN rail temperature/process master controller, (1) linear voltage output and (1) relay output.
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 34 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Applications:Heat and Energy Systems, HVAC
Compliance:CE, cULus
Control Output:SPST Relay
Controller Type:Master
Data Interface:RS-485 Modbus ASCII/RTU
Input Control Signal:0 to 20 mA
Input Type:Thermocouple, RTD, DC Voltage or DC Current
Memory Backup:Non-Volatile
Mounting Orientation:DIN Rail
Operating Temperature, Max:122 °F
Operating Temperature, Min:32 °F
Output Note:Relay: 3 A @ 250 VAC resistive
Output Type (A):Linear Voltage
Output Type (B):Relay
Power Consumption:3 W
RTD Input Range:JPt 100: -4 to 752°F; Pt 100: -328 to 1562°F; Ni 120: -112 to 572 °F; Cu 50: -58 to 302 °F
Supply Power Type:DC
Supply Voltage:24 Vdc
Switch Rating:3 A @ 250 Vac
Temperature Sensor Type:RTD or Thermocouple
Thermocouple Input Range Note:Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type W: -328 to 2372°F; Type R: 32 to 3092°F; Type S: 32 to 3092°F; Type B: 212 to 3272°F; Type L: -328 to 1562°F; Type U: -328 to 932°F
Voltage Input Range:0 to 5 V, 0 to 10 V
Voltage Output Range:0 to 10 Vdc
Weight:2.7 oz
