DwyerOmegaSeries-SBLT2
SBLT2-5M-10M

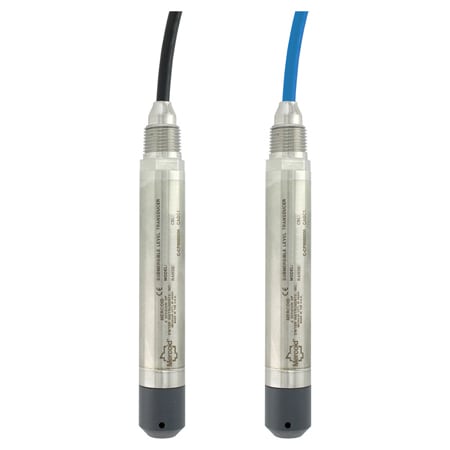

Series SBLT2 & SBLTX Submersible Level Transmitter
- 가격
- 872,030 원
- VAT 10%
- 87,203 원
- 총 금액
- 959,233 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 6 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 0.25 %
Applications:HVAC, Water Quality Monitoring
Cable Length:10 m
Compensated Temperature, Max:140 °F
Compensated Temperature, Min:0 °F
Compliance:CE, UKCA
Electrical Connection:Pigtail Leads
Electrical Output:4 to 20 mA
Loop Resistance:900 Ω at 30 Vdc max
Material Construction Option:Polyether Polyurethane cable jacket
Materials, Wetted:Fluoroelastomer, Polyether, Polyurethane, PVC, Stainless Steel
Measurement Pressure, Max:5 mH2O
Media Compatibility:Consult Factory
Mounting:Suspended in Tank Below Level Being Measured
Operating Temperature, Max:150 °F
Operating Temperature, Min:0 °F
Output Detail:4 to 20 mA DC, 2-wire
Output Signal:Current
Protection:Lightning and Surge Protection
Response Time:50 ms
Supply Power Type:DC
Supply Voltage:10 to 30 Vdc
Thermal Effect:± 0.02% FS/°F
Weight:1 kg
