DwyerOmegaRTDCAP

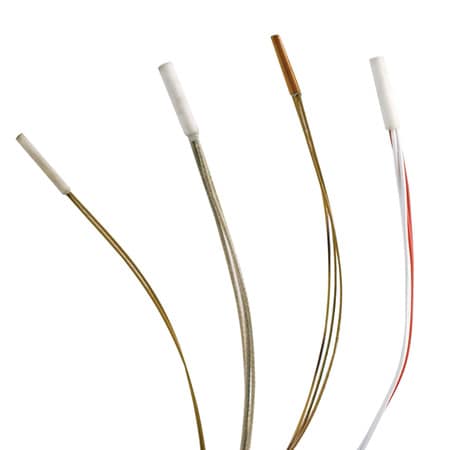

RTDCAP-100A-2-A125-060-T-60
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:Class A
Accuracy Detail:Class A (± 0.15+.002*
Cable Length:1.5 m
Current, Max:5 mA
Electrical Connection:Stripped Leads
Housing Material:Alumina
Insulation Resistance:>50 MΩ @ 50 Vdc
Insulation Resistance Note:Greater than 50 Megohms at 50 Vdc. at 25°C (77°F)
Lead Material:Nickle Plated Copper
Long Term Stability:0.05°C (0.02% of resistance) per 5 years, -50 to 300°C, 0.25°C per year to 540°C
Nominal Resistance:100 Ω
Number of Wires:3
Process Temperature, Max:260 °C
Process Temperature, Min:-200 °C
Recommended Current:1 mA
Response Time, Water:0.8 sec
Self Heating Effect:>15 mW/°C
Sensing Element:RTD
Sensor Diameter:0.125 in
Sensor Length:0.6 in
Temperature Sensor Type:RTD
Wire Gauge:28 AWG
