DwyerOmegaRD8800-Series

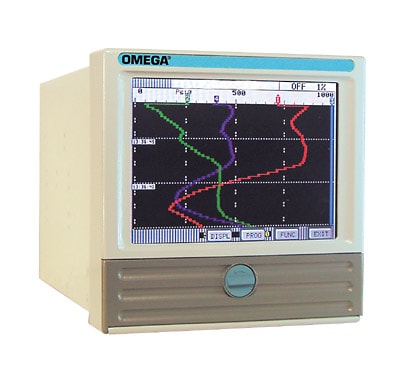

RD8806CF
Paperless Recorder/Data Acquisition System
- 가격
- 5,266,420 원
- VAT 10%
- 526,642 원
- 총 금액
- 5,793,062 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.06 %
Accuracy Detail:Voltage: ±0.06% for ±150 mV, ±1.25V, ±2.5V; ±0.1% for ±12.5V, ±25V, Current: ±0.15% with external 50 Ω 0.1% shunt, Thermocouple: ±1.5°C for J, K, T, E, N; ±3°C for R, S and C; ±4°C for B RTD: ±0.5°C or 0.2%,
Approvals:CE, EMC, UL
Battery Backup:Yes
CMRR:>100 dB, 50/60 Hz
Chart Speed:10 to 15,000 mm/hr
Cutout Dimensions:138 x 138 mm
Data Buffer:Internal buffer enables real time browsing of historic chart data independent of recorded data
Data Format:Proprietary File Structure
Data Interface Note:Recording Cycle: User programmable from 8 samples per second to 1 sample every 10 min
Display Note:Display Type Color:CCFL backlit active matrix TFT liquid crystal display Configuration::Touchscreen control menu with button bar or simple programming on IBM compatible PC with optional software1 sec; data update rate programmable from 1 to 60 sec. Display Modes: Graphics (trending, vertical or horizontal), bar graphs (vertical or horizontal), digital meter, alphanumeric alarm and event data or combinations on a split screen; review trend data; search by time, date or signal value. Display Windows: Time/date, graphics (bars, large digital, trends), disk status, system status, menu button bar, unit identification, alarms/events.
Display Resolution:320 x 234 Pixels
Display Size:142 mm (5.6 in)
Display Type:LCD
Enclosure Ratings:IP65
Enclosure Ratings Note:EMC Compliance: Meets or exceeds the requirements of EMC 89/336/EEC Meets UL-311-1 and EN61010-1
Height:144 mm
Impedance Input:>10 MΩ
Input Current:4 to 20 mA, 10 to 50 mA
Input Note:>10 MΩ on 150 mV, 1.25V, 2.5V, >100 K on 5, 12.5, 25V ranges; Max Rating: 50 Vdc
Input Type:Thermocouple, RTD, Voltage, Current
Isolation:300 Vac/Vdc between channels
Length:236 mm
Measurement Type:Universal
Memory:256 MB Samples on 128 MB Flash Card
Mounting:1/2 DIN Panel Mount
NMRR:>50 dB at 50/60 Hz
Number of Inputs:6
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Programmable Functions:Linear, Logarithmic, Square Root Function
RTD Type:100/200 Ω Pt sensor, α= 0.00385 or 0.00392, Cu10, Ni120
Relative Humidity:10 to 80% RH
Relative Humidity Note:10% to 80% RH non-condensing
Resolution:0.0015% of Full Scale, 16 bit unless otherwise Stated
Samples Note:User Programmable from 8 Samples per Second to 1 Sample every 10 min
Sampling Rate:8 Hz (8 updates/second)
Scan Rate:125 ms
Software:Include: Spreadsheet Export Utility Software included; Optinal: Graphical Software, OS: Windows XP/ Vista/7/8/10
Supply Power Note:100 to 240 Vac, 50/60 Hz, or 125 to 300 Vdc, 35 VA max;Programmed parameters stored in non-volatile memory; clock battery backed; detention time without power >12 months
Supply Power Type:AC, Battery
Supply Voltage:100 to 240 Vac
Thermocouple Type:J, K, T, E, R, S, B, C, N
Weight:3.2 kg
Width:144 mm
