DwyerOmegaRD45A-RD46A-Series

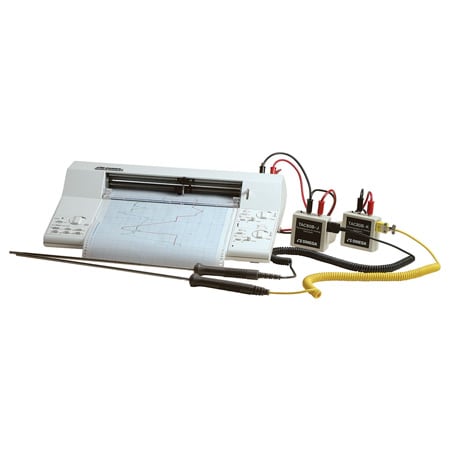

RD45A-EPL

200mm (8") Single and Dual Channel Flatbed Recorders, 14 Input Ranges from 1mV to 20Vdc

가격: 10,004,760 원

VAT 10%: 1,000,476 원

총 금액: 11,005,236 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 0.3 %

Accuracy Detail:Chart Timebase: ±50 ppm, Span Accuracy: 0.3% v

Adjustments:40 to 100%

CMRR:130 dB

Chart Length:25000 mm

Chart Note:Step Size: 0.050 mm

Chart Speed:0.1, 0.2, 0.5, 1, 2, 5, 10, 20 mm/min or mm/sec

Chart Width:200 mm

Deadband:Recording: 0.2%

Height:90 mm

Impedance Input:1 MΩ dc; 10 kΩ in series with 1.5 µF for ac

Length:290 mm

Measurement Range Note:Voltage: 1, 2, 5, 10, 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20 Vdc; Input: Floating, non-symmetric, Input Terminals: 2 safety terminals, Max Input Voltage: 42 Vdc/30 Vac max at input terminals; (personal safety limits)

Measurement Type:Voltage

Non-Linearity:± 0.3 %

Number of Channels:1

Operating Temperature, Max:40 °C

Operating Temperature, Min:-10 °C

Pen Type:Pen Lift

Pen Type Note:Electronic; automatic pen lift after 30 sec if chart is not advanced

Power Consumption:30 VA

Recording Note:Zero Position: User-selectable, left or right side

Relative Humidity:35 to 85% RH

Response Time:0.2 Sec

Storage Temperature, Max:75 °C

Storage Temperature, Min:-40 °C

Supply Power Note:110/220 Vac, switchable; -15/+20%; 50/60 Hz

Supply Power Type:AC

Supply Voltage:110/220 Vac

Thermal Zero Effect:1 µV/°C

Voltage Measurement Range:0 to 1 mV, 0 to 2 mV, 0 to 5 mV, 0 to 10 mV, 0 to 20 mV, 0 to 50 mV, 0 to 100 mV, 0 to 200 mV, 0 to 500 mV; 0 to 1 Vdc, 0 to 2 Vdc, 0 to 5 Vdc, 0 to 10 Vdc, 0 to 20 Vdc

Weight:3.5 kg

Width:380 mm

Zero Setting Adjustable Range:-50 to 150% FS
