DwyerOmegaQTS-6000

QTS-61160X-E000000

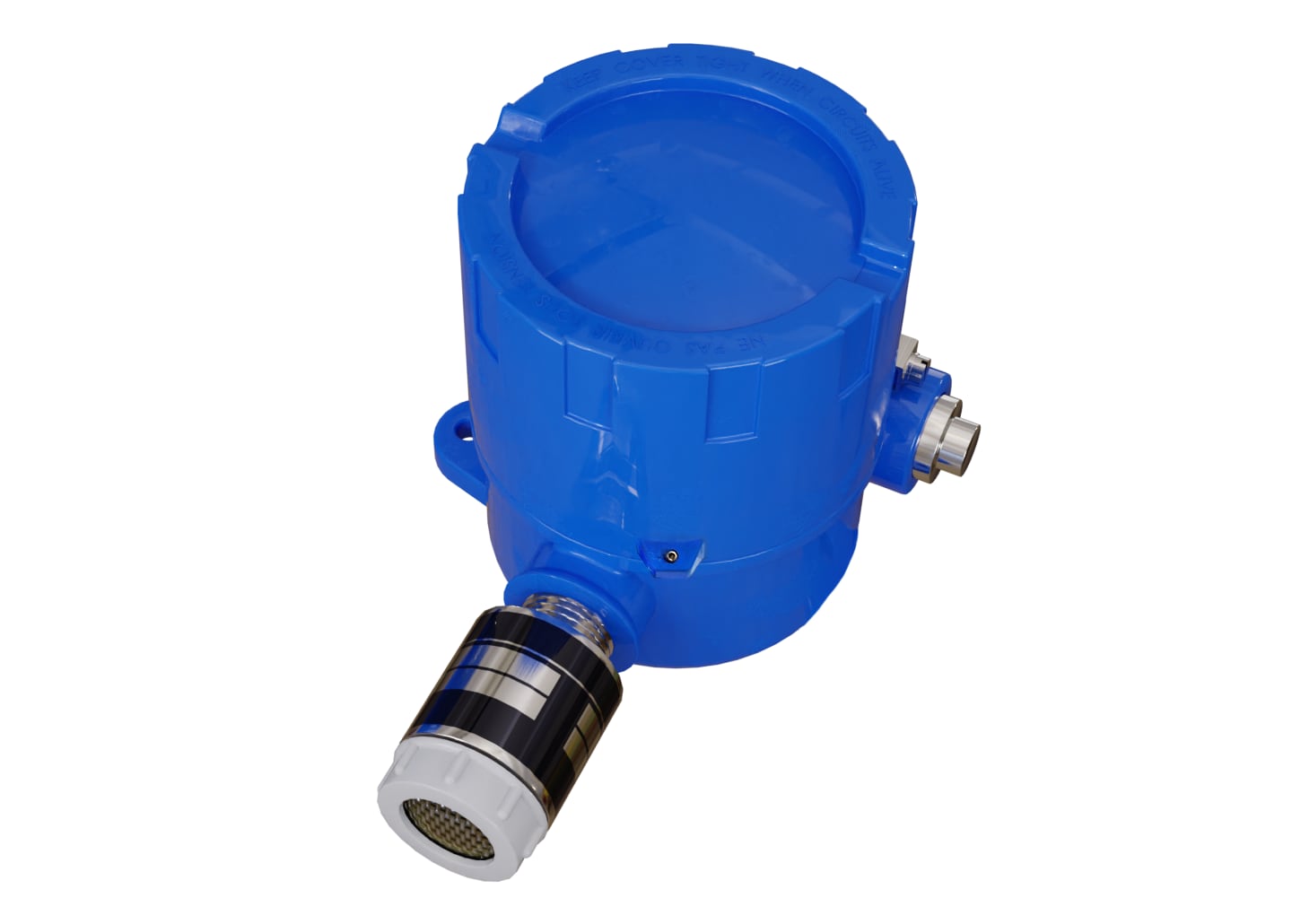

Toxic Gas Sensor, Carbon Monoxide, 0-250 PPM, 4-20mA Output, loop powered, Insustrial NEMA 4X, Aluminum Sensor Housing

판매 가격: 가격 문의

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

실시간 문의하기

제품 사양

Accuracy:± 2.5 %

Applications:Access and Parking Control Systems, Building and Maintenance, Industrial and Manufacturing, Power Plants & Boilers, Refrigeration Equipment

Approvals:RoHS, CSA-4828-02 (CSA File #: 088890 0 000 for Industrial Enclosure Options Only)

Calibration Note:Recommended Maintenance: Accuracy & Bump test every 3 to 6 months or as required by Code

Display Type:N/A

Electrical Connection:Screw Terminal

Electrical Output:4 to 20 mA

Enclosure Material Note:Commercial “C”: General Purpose (Wall Mount); ABS Plastic, UL94 V-0; NEMA 1 (IP10) Commercial “D”: General Purpose (Duct Mount); ABS Plastic, UL94 V-0; NEMA 1 (IP10) Commercial “N”: Weatherproof (Wall Mount); ABS Plastic; UL94 V-0; NEMA 4X (IP56) Industrial “E1 ”: Industrial Connection Head; Aluminum (Epoxy Coated); NEMA 4X (IP56) and Enclosure meets Type 7 & 9 Explosion Proof Class 1 Div. 1, Groups B, C, D also Group A; CSA, FM (Factory Mutual), EX (Explosion Proof), UL listed Industrial “S1 ”: Industrial Connection Head; 316 Stainless Steel; NEMA 4X (IP56) and Enclosure meets Type 7 & 9 Explosion Proof Class 1 Div. 1, Groups B, C, D also Group A; CSA, FM (Factory Mutual), EX (Explosion Proof), UL listed

Load Resistance:600 Ohms

Material Construction Option:none

Operating Environment:Indoor use only

Operating Humidity:0 to 90% RH, non-condensing

Operating Temperature, Max:122 °F

Operating Temperature, Min:32 °F

Power Consumption:0.9 W max

Protection:4.0 Watts @ 1m (3.28 ft) Radiated

Relative Humidity:32 to 68ºF (0 to 20ºC)

Response Time:< 60 Seconds, typical

Safety Features:28.5 VDC maximum and 300 minimum load

Sensor Type:Electrochemical, non-consuming
