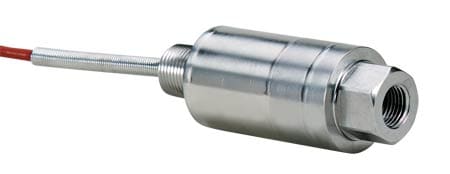

DwyerOmegaPX35
PXM35MD1-040BARGV
0 to 40 bar Gauge, 1/4" BSPP Female, MIL-26482-I 10-6P
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.25 %
Accuracy Class:0.1% to 0.25%
Accuracy Detail:0.25% linearity, hysteresis and repeatability combined
Burst Pressure:3x Full Scale
Burst Pressure Note:300% of rated pressure
Compensated Temperature, Max:71 °C
Compensated Temperature, Min:16 °C
Electrical Connection:MIL-26482-I 10-6P
Electrical Output:3 mV/V
Electrical Output Note:3 mV/V nominal
Input Resistance:350 Ω
Materials, Wetted:17-4 Stainless Steel
Measurement Pressure Type:Gauge
Measurement Pressure, Max:40 bar
Measurement Pressure, Min:0 bar
Operating Temperature, Max:149 °C
Operating Temperature, Min:-73 °C
Output Resistance:315 Ω to 530 Ω
Output Signal:Millivolt
Process Connection Size:1/4 in
Process Connection Type:BSPP Female
Proof Pressure:150% Full Scale
Supply Power Note:10 Vdc (15 V maximum)
Supply Voltage:10 Vdc
Thermal Effect on Span error, Max:0.0054% rdg/°C
Thermal Effect on Zero error, Max:0.0054% rdg/°C, 0.008% FSO/°C
Zero/Balance Error:± 2.0% FSO
