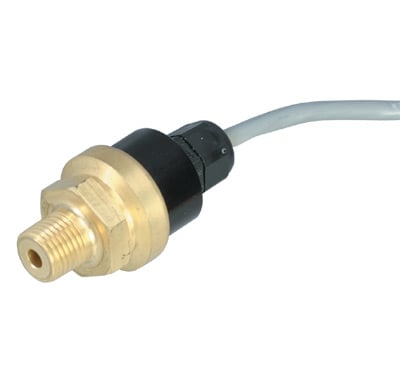

DwyerOmegaPX180B
PX182B-015GI
0 to 15 psi, Gauge Pressure
- 가격
- 648,650 원
- VAT 10%
- 64,865 원
- 총 금액
- 713,515 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.3 %
Accuracy Class:> 0.25%
Accuracy Detail:0.3% BFSL maximum (includes linearity, hysteresis and repeatability)
Bolt Size:1.125 in
Burst Pressure:3x Full Scale
Burst Pressure Note:3X FS or 750 psig, whichever is less
Cable Length:0.4 m
Compensated Temperature, Max:75 °C
Compensated Temperature, Min:-25 °C
Diameter:29.7 mm
Electrical Connection:Cable
Electrical Output:4 to 20 mA
Height:72 mm
Materials, Wetted:Borosilicate, Brass, Epoxy, RTV, Silicon
Measurement Pressure Type:Gauge
Measurement Pressure, Max:15 psi
Measurement Pressure, Min:0 psi
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Output Resistance:50000 Ω
Output Signal:Current
Process Connection Size:1/8 in
Process Connection Type:NPT Male
Process Temperature, Max:100 °C
Process Temperature, Min:-40 °C
Proof Pressure:2x Full Scale
Proof Pressure Note:2x FS (750 psig for 500 psig range)
Shock:30 g
Stability:<0.25%
Stability Note:1-Year Stability :<0.25% FS
Supply Power Note:10 Vdc (regulated)
Supply Voltage:10 Vdc
Thermal Effect on Span error, Max:± 1% gage
Thermal Effect on Zero error, Max:2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range
Vibration:10 g, 55 to 2000 Hz
Weight:142 g
