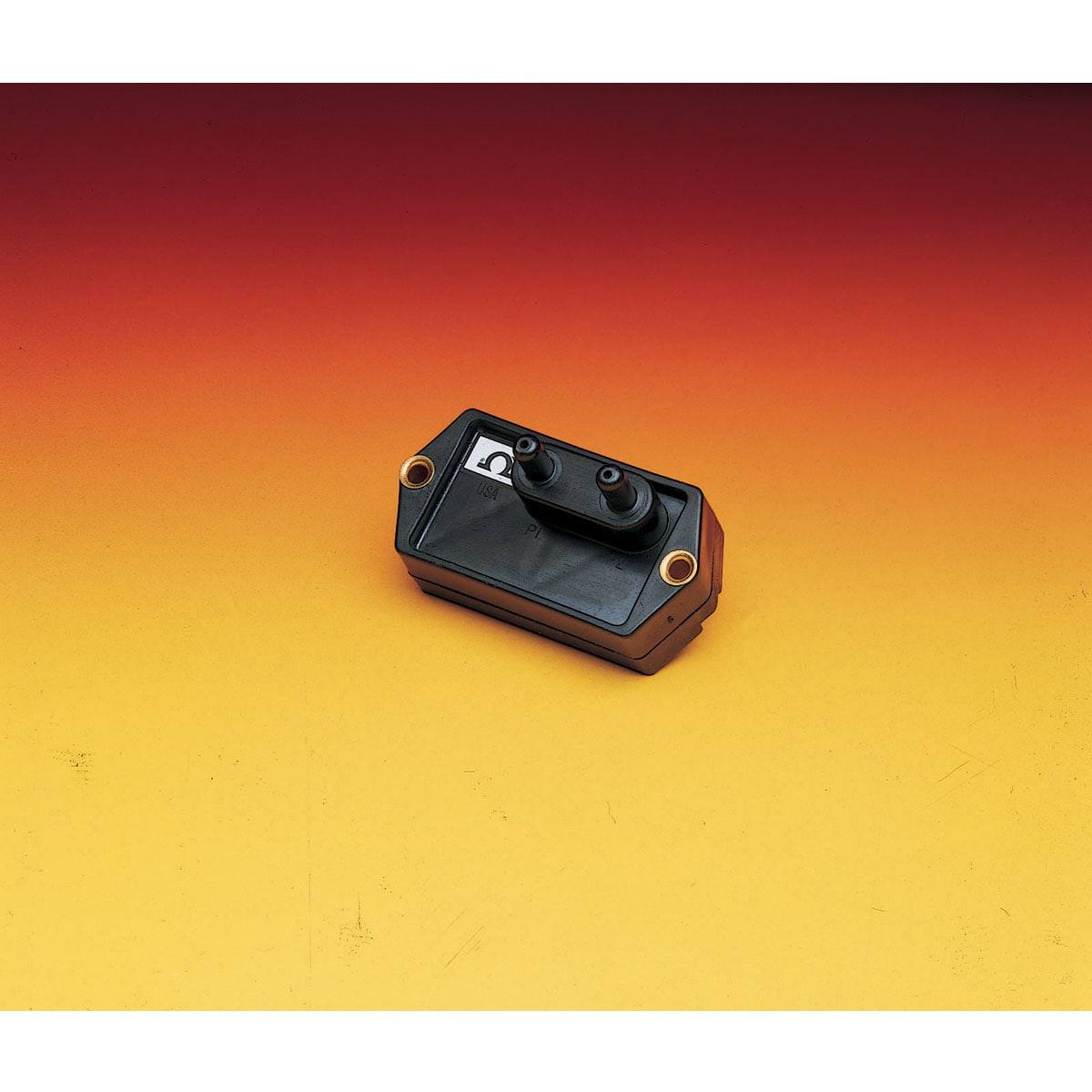

DwyerOmegaPX160
PX164-005D5V
0 to 5 inH2O, Differential Pressure
- 가격
- 886,610 원
- VAT 10%
- 88,661 원
- 총 금액
- 975,271 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Class:> 0.25%
Additional Features 1:Differential
Burst Pressure:5 psi Maximum
Compensated Temperature, Max:45 °C
Compensated Temperature, Min:5 °C
Electrical Connection:Pins
Electrical Output:1 to 6 V
Hysteresis:± 0.25% FS
Linearity Error:± 1.0%
Mating Connector:CX136-3
Measurement Pressure Type:Differential
Measurement Pressure, Max:5 inH₂O
Measurement Pressure, Min:0 inH₂O
Media Compatibility:Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Signal:Voltage
Process Connection Size:5 mm
Process Connection Type:Stem
Repeatability Error:± 0.25% FS
Response Time:1 ms
Supply Voltage:8 Vdc
Thermal Effect on Span error, Max:± 0.02 %FS/℃
Zero/Balance Error:1.0 Vdc ± 0.05
Zero/Balance Error Note:1 Vdc ± 0.05 (3.5 ± 0.05 Vdc PX163 Series)
