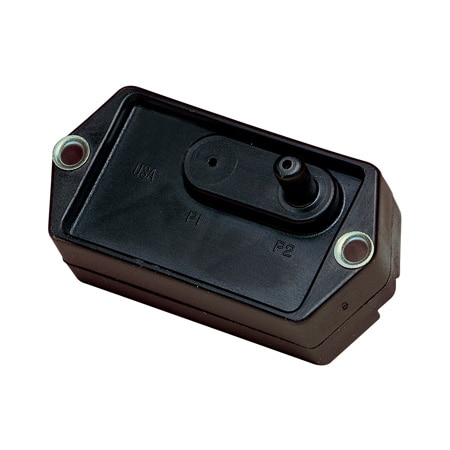

DwyerOmegaPX140
PX141-001D5V
Transducers for Vacuum/Absolute/Differential/Gage Measurements for Clean Gases
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.75 %
Accuracy Class:> 0.25%
Additional Features 1:None
Burst Pressure:3x Full Scale
Compensated Temperature, Max:63 °C
Compensated Temperature, Min:-18 °C
Electrical Connection:Pins
Electrical Output:1 to 6 V
Electrical Output Note:1 to 6 Vdc (± 2.5 Vdc PX143)
Hysteresis:0.15% FS (0.30% FS ≤5 psi range)
Linearity Error:± 0.75%
Measurement Pressure Type:Vacuum
Measurement Pressure, Max:0 psi
Measurement Pressure, Min:-1 psi
Media Compatibility:Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-corrosive Dry Gasses, Oxygen
Output Signal:Voltage
Process Connection Size:5 mm
Process Connection Type:Stem
Response Time:1 ms
Supply Voltage:8 Vdc
Thermal Effect on Span error, Max:0.01% FS/°F
Zero/Balance Error:1.0 Vdc ± 0.05
Zero/Balance Error Note:1 Vdc ± 0.05 (3.5 ± 0.05 Vdc PX163 Series)
