DwyerOmegaPTC-1A-series
PTC-1A

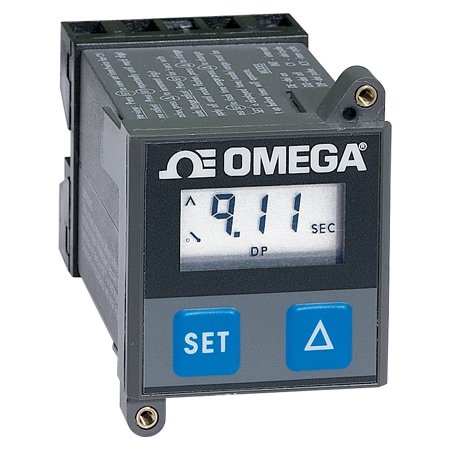

PTC-1A-Series 1/16 DIN LCD Industrial Timer with 6 Programmable Time Ranges, Universal Power, 6 Programmable Time Ranges up to 99.9 Hrs
- 가격
- 396,050 원
- VAT 10%
- 39,605 원
- 총 금액
- 435,655 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:± 20 ms or ± 0.5 % of set time
Contact Rating:SPDT relay, rated 7 A at 30 Vdc/240 Vac resistive
Cutout Dimensions:45 x 45 mm
Display Type:3 Digit Display
Electrical Life:200,000 operations at rated load
Form factor:1/16 DIN
Frequency:47 to 440 Hz
Height:48 mm
Isolation:1500 Vac 50 Hz
Length:89 mm
Mechanical Life:10 million operations
Number of Relays:1
Operating Temperature, Max:50 °C
Operating Temperature, Min:0 °C
Power Consumption:1 W
Reset:10 ms
Series ID:PTC-1A-series
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Supply Power Type:AC/DC
Timer Range:0.1 to 9.99 sec, 0.1 to 99.9 sec, 0.01 to 9.99 min, 0.1 to 99.9 min, 0.01 to 9.99 hrs, 0.1 to 9.99 hrs
Width:48 mm
