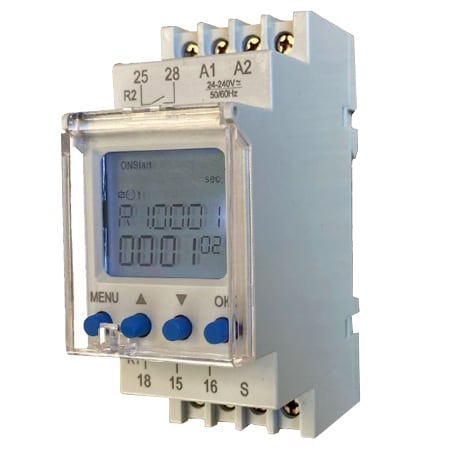

DwyerOmegaPTC-16-A-Timer
PTC-16-A
Multifunction Digital Timer
- 가격
- 327,270 원
- VAT 10%
- 32,727 원
- 총 금액
- 359,997 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:±3 sec/24 hrs
Contact Rating:OP1 8A at 250Vac/30Vdc (resistive),OP2 8A at 250Vac/30Vdc (resistive)
Control Output:Single pole changeover contact and single pole N/O contact
Electrical Life:100,000 operations
Enclosure Ratings:IP20
Enclosure Type:Panel mounting to DIN 43700, Self extinguishing plastic case Plug in connection terminals
Form factor:DIN Rail
Frequency:50/60 Hz
Height:90 mm
Length:65 mm
Number of Relays:2
Operating Temperature, Max:45 °C
Operating Temperature, Min:-5 °C
Power Consumption:3 VA
Reset:~100 ms
Series ID:PTC-16-A-Timer
Storage Temperature, Max:55 °C
Storage Temperature, Min:-10 °C
Supply Power Type:AC
Supply Voltage:24 to 240 Vac
Timer Range:0 to 9999sec,0 to 9999min
Weight:140 g
Width:36 mm
