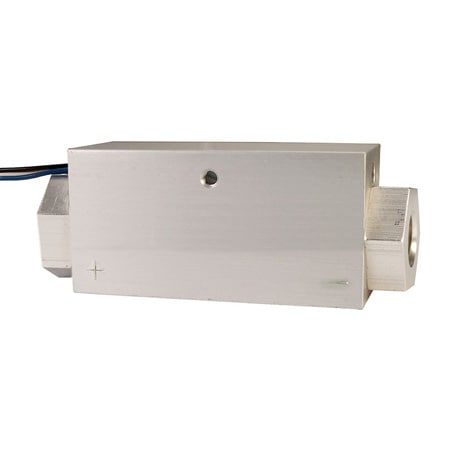

DwyerOmegaPSW845
PSW845-4
20 to 150 psi, fixed deadband
- 가격
- 389,610 원
- VAT 10%
- 38,961 원
- 총 금액
- 428,571 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Control Output:SPDT Relay
Cycling:< 20 cycles/min
Deadband Type:Fixed
Electrical Connection:Pigtail Leads
Height:1.5 in
Length:1.25 in
Measurement Pressure Type:Differential
Measurement Pressure, Max:160 psi
Measurement Pressure, Min:20 psi
Operating Temperature Note:-54 to 107°C (-65 to 225°F); setpoint change of up to 2% of sensor capacity may be anticipated when switch is used below -23°C or above 52°C
Operating Temperature, Max:107 °C
Operating Temperature, Min:-54 °C
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Proof Pressure:Up to 9000 psi
Proof Pressure Note:Vacuum: to 6000 psig Differential Pressure: to 2000 psid Proof: 9000 psig
Repeatability:± 16%
Switch:Single
Switch Note:SPDT, rated 0.25 A @ 120 Vac/175 Vdc
Switch Type:SPDT NO/NC, Selectable
Weight:8.5 oz
Width:4 in
