DwyerOmegaPSW-681-Series

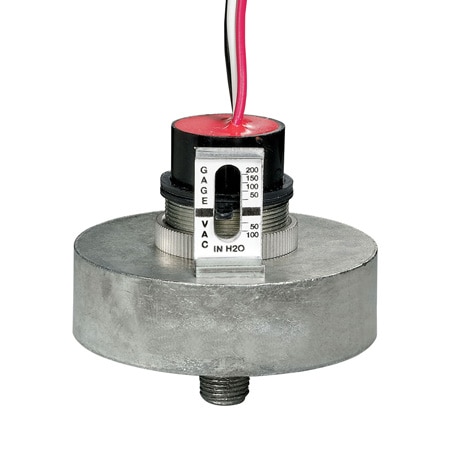

PSW-685

-134 to 395 inH2O, fixed deadband

가격: 368,170 원

VAT 10%: 36,817 원

총 금액: 404,987 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Control Output:SPST Relay

Cycling:< 20 cycles/min

Deadband Type:Fixed

Decreasing Pressure, Max:-6.8 inHg

Decreasing Pressure, Min:-100 inHg

Electrical Connection:Pigtail Leads

Height:2.25 in

Increasing Pressure, Max:-5.4 inHg

Increasing Pressure, Min:-100 inHg

Insulation:PVC

Length:2.3 in

Materials:Zinc Alloy

Materials, Wetted:316 Stainless Steel, Aluminum, Buna-N (NBR), Methacrylate Ester

Measurement Pressure Type:Compound Gauge

Measurement Pressure, Max:200 inH₂O

Measurement Pressure, Min:2.75 inH₂O

Output Note:Silver Switch Contacts Rated for 5 A @ 250 Vac

Output Value:5A @ 250 Vac

Process Connection Size:1/8 in

Process Connection Type:NPT Male

Process Temperature Note:-55 to 90°C (-67 to 194°F); a setpoint change of up to 2% of sensor capacity can be anticipated when switch is used either below -25°C (-13°F) or above 50°C (122°F)

Process Temperature, Max:90 °C

Process Temperature, Min:-55 °C

Proof Pressure:Up to 20 psi

Setpoint Repeatability:± 0.8 inH20

Switch:Single

Switch Rating:5 A @ 250 Vac

Switch Type:SPST

System Pressure, Max:20 psi

Weight:7.8 oz

Wire Gauge:20 AWG

Wiring/Connector Table:Red = N/C, White = N/O, Black = Common
