DwyerOmegaPSW-200

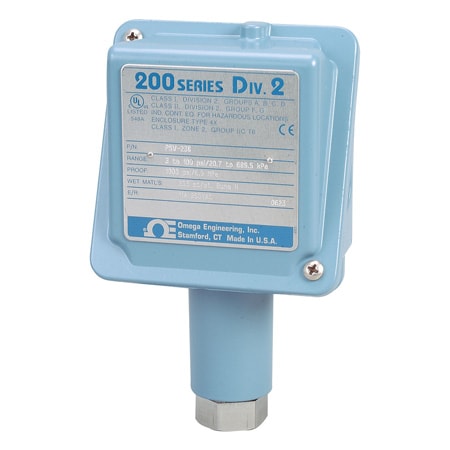

PSW-225D
2.5 to 50 inH2O, fixed deadband
- 가격
- 2,514,070 원
- VAT 10%
- 251,407 원
- 총 금액
- 2,765,477 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:UL listed
Control Output:DPDT Relay
Deadband:3.6 to 3.6 inH2O
Deadband Type:Fixed
Electrical Connection:Screw Terminal
Enclosure Ratings:IP66, NEMA Type 4X
Length:6 in
Materials:Aluminum, Epoxy, Buna-N (NBR), Nitrile Rubber
Measurement Pressure Type:Gauge
Measurement Pressure, Max:50 inH₂O
Measurement Pressure, Min:2.5 inH₂O
Operating Temperature Note:setpoint typically shifts less than 1% of range for a 28°C (50°F) ambient temperature change
Operating Temperature, Max:71 °C
Operating Temperature, Min:-18 °C
Output Note:11 A 125/250 Vac resistive
Output Value:11A @ 125/250/480 Vac
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Process Temperature, Max:93 °C
Process Temperature, Min:-23 °C
Proof Pressure:Up to 100 psi
Sensor Type:Diaphragm
Setpoint Repeatability:± 1%
Shock:Setpoint repeats after 15 g, 10 ms duration
Storage Temperature, Max:71 °C
Storage Temperature, Min:-54 °C
Switch:Single
Switch Note:Switch Output: Hermetically sealed SPDT or DPDT switch can be wired “normally open” or “normally closed”
Switch Type:DPDT
Vibration:Setpoint repeats after 2.5 g, 5 to 500 Hz
Weight:6 lb
Weight Note:0.7 to 2.7 kg (1.5 to 6 lb) (varies by model)
Width:6 in
