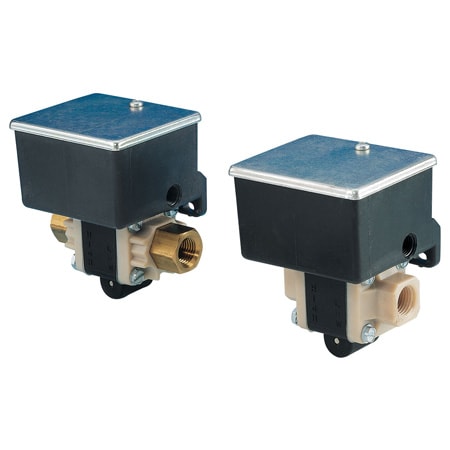

DwyerOmegaPSW-180
PSW-184
DIFF. PRESS. SWITCH, 4-45 PSID
- 가격
- 504,770 원
- VAT 10%
- 50,477 원
- 총 금액
- 555,247 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Control Output:SPDT Relay
Deadband:0 to 1 psi
Deadband Type:Fixed
Enclosure Ratings:IP65, NEMA Type 4
Height:3.5 in
Length:2.38 in
Materials:Polyester, Neoprene, Brass
Measurement Pressure Type:Differential
Measurement Pressure, Max:45 psi
Measurement Pressure, Min:4 psi
Operating Temperature, Max:70 °C
Operating Temperature, Min:0 °C
Output Note:15 A: 125/250/480 Vac, 0.5 A: 125 Vdc, 0.25 A: 250 Vdc
Output Value:15A @ 125/250/480 Vac
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Process Temperature, Max:95 °C
Process Temperature, Min:0 °C
Proof Pressure:Up to 150 psi
Proof Pressure Note:150 psid at up to 70°C (158°F) air temperature
Repeatability:± 1%
Repeatability Note:1% of span
Shock:Setpoint repeats after 15 g, 10 ms duration
Storage Temperature, Max:80 °C
Storage Temperature, Min:-30 °C
Switch:Single
Switch Note:SPDT rated at 5 A at 250/125 Vac, 5 A at 30 Vdc, gold-clad contacts
Switch Type:SPDT NO/NC, Selectable
Vibration:MIL STD 810C, 2.5 g, 5 to 500 cps
Weight:5.8 oz
Width:3.13 in
