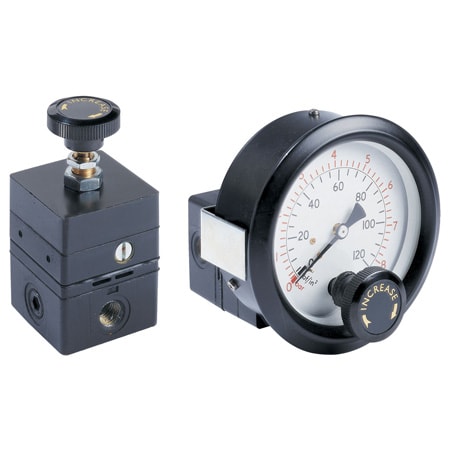

DwyerOmegaPRG101
PRG101-60
2 to 60 psig
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.05 %
Accuracy Detail:0.1% Regulation Accuracy (15 psi Supply Pressure Change at Midrange)
Air Supply Pressure, Max:150 psi
Air Supply Pressure, Min:3 psi
Enclosure Ratings:IP65
Hysteresis:0.0005
Materials:Epoxy, Die Cast Zinc, NBR, Beryllium-copper
Measurement Pressure Type:Gauge
Media Compatibility:Air, Argon, Clean Dry Air, Nitrogen
Mounting:Any attitude; integral mounting nut supplied
Number of Turns in Control Range:2.5
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Pressure, Max:60 psi
Output Pressure, Min:2 psi
Process Connection Size:1/4 in
Process Connection Type:NPT Female
Repeatability:0.0005
Response Time:0.2 sec
Response Time Note:0.2 sec Response Time to 50% Load Change
Sensitivity:0.005 psi
Total Air Consumption:0.02 SCFM
Total Air Consumption Note:0.02 SCFM Consumption @ Mid Range
Volumetric Flow Rate, Max:10 SCFM
Weight:750 g
