DwyerOmegaPR-13
PR-13H-3-100-1/4-3

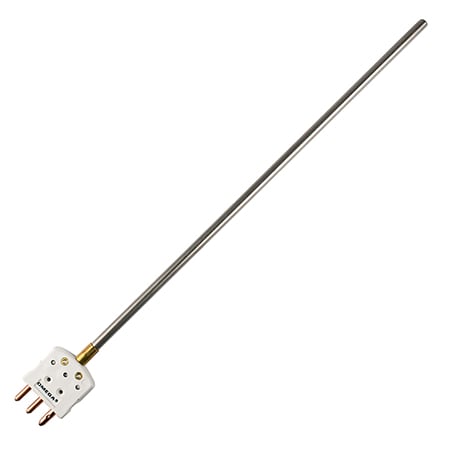

RTD probe with connector, 3 in length
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:Class A
Accuracy Detail:Class A from -50 to 300°C (-58 to 572°F); or else Class B
Electrical Connection:3-Prong Standard Male Thermocouple Connector
Enclosure Ratings:IP67
Model:High
Nominal Resistance:100 Ω
Nominal Resistance/Curve Note:100 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard
Number of Wires:3
Probe Diameter:0.25 in
Probe Length:3 in
Process Connection Size:N/A
Process Temperature, Max:450 °C
Process Temperature, Min:-50 °C
RTD Type:100 Ω Pt Sensor
Response Time:5.41 sec
Sheath Material:304 Stainless Steel
Shock:IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Temperature Coefficient:0.00385 Ω/Ω/°C
Temperature Coefficient Note:α = 0.00385 Ω/Ω/°C
Temperature Sensor Type:RTD
Thermocouple Type:N/A
Vibration:IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute; Number of sweep cycles 10 and acceleration 5g (15 probes tested together) ; Duration: 1 day
