DwyerOmegaSeries-PLS2

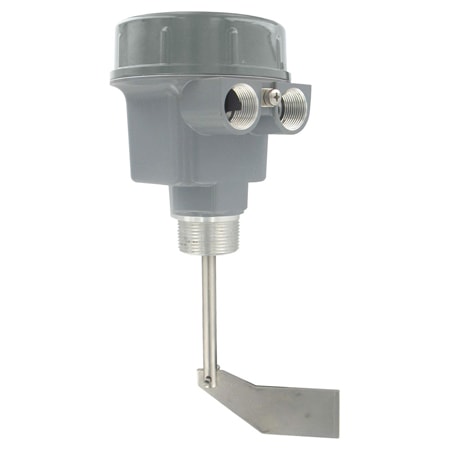

PLS2-E-1-2
PLS2-E-1-2 PDL LVL SW 230 VAC
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 12 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Bulk Density:6 lb/ft³
Compliance:CE, FM
Electrical Connection:3/4 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP66, NEMA Type 4
Enclosure Ratings Note:NEMA 4, IP66; Rated for Class II & III, Div. 1, Group E, F, G
Materials:Aluminum
Materials, Wetted:Aluminum, Buna-N (NBR), Stainless Steel
Media Compatibility:Cement Powder, Dry Powder, Flour
Mounting Orientation:Side Mount, Top Mount
Operating Temperature, Max:140 °F
Operating Temperature, Min:-4 °F
Permitted Mechanical Loading:Standard Shaft: 67 lbf max; Optional Extension: 22 lbf max
Power Consumption:4 VA
Pressure Limits:Up to 11.6 psi
Process Connection Size:1 1/4 in
Process Connection Type:NPT Male
Process Temperature, Max:176 °F
Process Temperature, Min:-13 °F
Supply Power Type:AC
Supply Voltage:230 Vac
Switch Rating:5 A @ 250 Vac, 3 A @ 30 Vdc
Switch Type:SPDT Micro
Weight:2.6 lb
