DwyerOmega7352-3-Series
PHE-7352-15

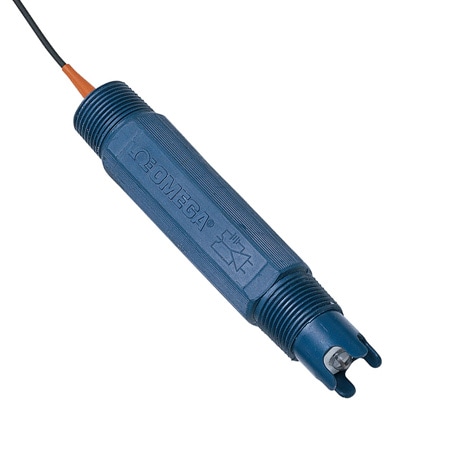

Heavy-Duty pH Sensor For Submersible Applications
- 가격
- 383,680 원
- VAT 10%
- 38,368 원
- 총 금액
- 422,048 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Applications:Agricultural & Hydroponics Applications, Chemicals, Environmental Monitoring, Food and Beverage, Mining & Metallurgy, Pharmaceuticals, Power Plants & Boilers, Pulp & Paper Industry, Water Treatment
Cable Length:4.6 m
Construction Type:Heavy-duty pH electrode
Diameter:0 mm
Drift:<2 mV per week
Electrical Connection:N/A
Enclosure Material:PPS, PTFE, FKM, Glass
Impedance:150 MΩ
Length:0 mm
Measurement Pressure, Max:100 psig, 100 psi
Measurement Pressure, Min:0 psig, 0 psi
Measurement Type:pH
PH Measurement Range:0 to 14.00 pH
Pressure Note:0 to 100 psig or 0 to 150 psig (HT high temperature version) β ±0.1% over full range
Process Connection Size:3/4 in
Process Connection Type:NPT Male
Process Temperature, Max:80 °C
Process Temperature, Min:0 °C
Reference Cell:Double junction, KCl/AgCl, KNO3
Response Time:95% of reading in 10 sec
Sensor Type:N/A
Sodium Error:Less than 0.05 pH in 0.1 Molar Na+ ion @ 12.8 pH
Temperature Note:0 to 80°C (32 to 176°F) or 0 to 110°C (32 to 230°F) (HT high temperature version)
Temperature Sensor Type:N/A
Zero/Balance Error:7.0 ±0.2 pH
