DwyerOmegaPHCN-961-Series
PHCN-962

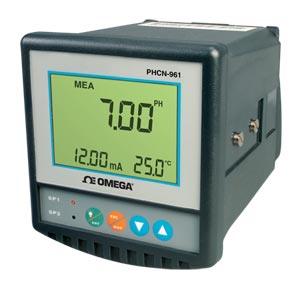

pH Controller
- 가격
- 1,829,690 원
- VAT 10%
- 182,969 원
- 총 금액
- 2,012,659 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 mV
Calibration Note:pH Calibration modes: Programmable from 1 to 999 hours
Cutout Dimensions:93.5 x 93.5 mm
Data Interface:RS485
Deadband:pH : 0.01 to 2 pH, ORP: 1 to 200 mV
Display Size:13.7 mm (0.54 in)
Display Type:4 Digit LCD
Display Type Note:4-digit LCD, 13.7 mm (0.54"); blue backlit
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65, NEMA Type 4X
Frequency:50/60 Hz
Height:213 mm
Impedance:600 Ω
Impedance Input:10¹³ Ω
Input Range Note:pH Sensor Input: -2.00 to 16.00 pH; ORP Sensor Input: -999 to +999 mV
Length:113 mm
Measurement Resolution:pH: 0.01, ORP: 1 mV
Mounting Orientation:Wall Mount
Number of Relays:3
ORP Accuracy:± 1 mV
Operating Humidity:10 to 95% RH
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Output Detail:0 to 20 mA/4 to 20 mA isolated current output
Process Temperature, Max:-9.9 °C
Process Temperature, Min:130 °C
Relay Note:Three SPST relays, rated 250V @ 1 A
Relay Output:SPST
Sensor-Transducer Connection:BNC Connector
Supply Voltage:110/220 Vac
Temperature Accuracy:± 0.5 °C
Temperature Compensation:Automatic with ±10°C offset adjustment or manual
Temperature Resolution:0.1 °C
Temperature Sensor Type:1000 Ω RTD
Width:185 mm
pH Accuracy:± 0.01 pH
