DwyerOmegaPHCN37-Series

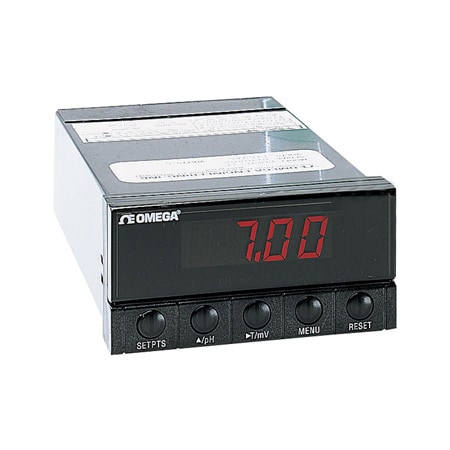

PHCN-37
pH Controller
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 mV
Additional Features 1:1/8" DIN, ORP, Sensors Sold Separately
Calibration Note:pH Calibration modes: 2 or 3 point
Cutout Dimensions:45 x 92 mm
Decimal Selection:3-Position, Autoranging
Display Size:13.7 mm (0.54 in)
Display Type:4 Digit LED
Electrical Output:4 to 20 mA
Height:48 mm
Impedance Input:>10¹² Ω
Length:177 mm
Measurement Resolution:pH: 0.01
Number of Relays:2
Output Detail:4 to 20 mA, 0 to 20 mA or 0 to 10V (scalable) software selectable
PH Measurement Range:0 to 14.00 pH
Process Temperature, Max:0 °C
Process Temperature, Min:100 °C
Relay Note:2 From "C" on/off relays. Configurable for latched and unlatched by software.
Relay Output:"C" on/off relays
Resolution:0.1, 1 mV
Sensor-Transducer Connection:pH/ORP-BNC; Temperature -Terminal Strip
Supply Voltage:115 Vac
Temperature Resolution:0.1 °C
Temperature Sensor Type:100 Ω or 1000 Ω RTD
Weight:580 g
Width:96 mm
pH Accuracy:± 0.03 pH
