DwyerOmegaPFTFS
PFTFS-8CU

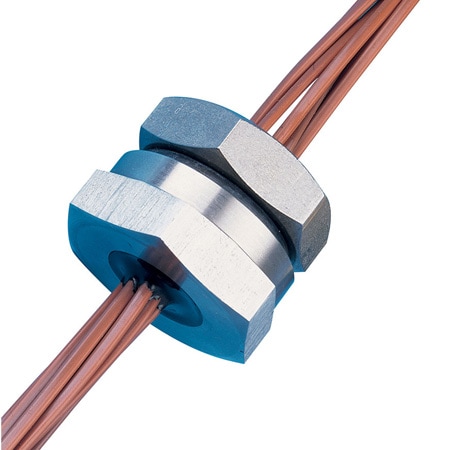

Vacuum/Pressure Feedthroughs, Hermetic Face Seal
- 가격
- 1,967,120 원
- VAT 10%
- 196,712 원
- 총 금액
- 2,163,832 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Across Flats Jam NUT HEX:35.05 mm
Alloy Material (+):Copper
Alloy Material (-):Copper
Fitting Model:Plate
Housing Flats:38.1 mm
JAM NUT Thickness:10.41 mm
Leak Rate Under Pressure:1 x 10⁻⁶ cc air/s at 2000 psi
Leak Rate Under Vacuum:less than 10^⁻⁸ cc He/s
Length:35.56 mm
Materials:Stainless Steel, NBR
Measurement Pressure, Max:2000 psi
Number of Wires:8
O-Ring Face R:37.85 mm
O-Ring, Max:121 mm
O-Ring, Min:2 mm
Out Gassing:<0.003% VCM
Out Gassing Note:<0.003% VCM; <0.34% weight loss; sample at 125°C, cold surface at 25°C
Process Connection Size:1 1/16 in
Process Connection Type:UNF Male
Process Temperature, Max:120 °C
Process Temperature, Min:-40 °C
Thread Length:19.05 mm
Vacuum Rating:1 x 10^-8 torr
Wire Gauge:20 AWG
