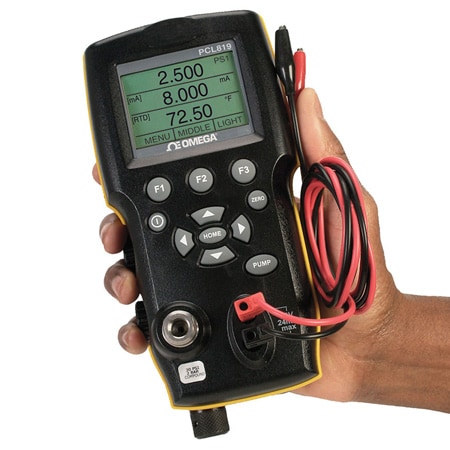

DwyerOmegaPCL819
PCL819-150
-12 to 150 psig
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:±0.015% of reading ±2 counts (simulation and measurement); Voltage Accuracy: ±0.015% of reading ±2 counts (measurement only)
Additional Features 1:Interchangable Pressure Module
Battery Size and Type:Alkaline AA
Construction Details:Electrically operated pneumatic pump generates -0.8 to 20 bar (-12 to 300 psi)
Current Accuracy:± 0.015 %
Electrical Connection:Banana Plug
Electrical Connection Note:RTD Connection: 4 pin LEMO style ; External Module: 6 pin LEMO style
Form factor:Handheld
Functions:Pressure Source & Pressure Reference & Signal Indication
Height:200 mm
Length:60 mm
Measurement Pressure Type:Gauge
Operating Pressure, Max:150 psi
Operating Pressure, Min:-12 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:-10 °C
Pressure Accuracy:± 0.025 %
Process Connection Size:1/8 in
Process Connection Type:NPT Female
Pump Type:Pnuematic
Storage Temperature, Max:60 °C
Storage Temperature, Min:-20 °C
Temperature Accuracy:± 0.1 °C
Temperature Accuracy Note:±0.1°C (0.2°C) (measurement only)
Voltage Accuracy:±0.015%
Weight:1.2 kg
Width:100 mm
