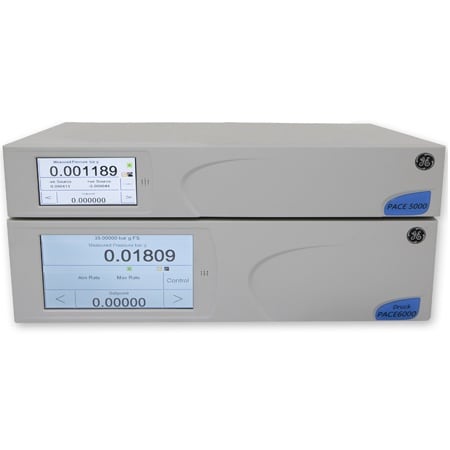

DwyerOmegaPACE5000-6000
PACE5000
PACE Precision Pressure Indicator
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Single Channel Pressure Controller Chassis
Calibration Temperature, Max:45 °C
Calibration Temperature, Min:15 °C
Compliance:CE, PED, RoHS 2, WEEE
Contact Rating:30V d.c. 1 Amp resistive/200 mA inductive
Data Interface:RS232, USB
Data Interface Note:RS232, USB and IEEE-488, SCPI, emulation (DPI520, DPI500, DPI510 & DPI515 depending on model) Ethernet (VXI-II & Sockets using SCPI)
Display Measuring Units:ATM, bar, cmH2O, ftH2O, hPa, inH2O, inHg, kg /cm2, kg/m2, kPa, lb/ft2, mbar, mH2O, mHg, mmH2O, MPa, Pa, psi, torr
Display Size:109 mm (4.3 in)
Display Type:TFT
Enclosure Ratings:IP20
Form factor:Benchtop
Functions:Pressure Reference
Height:320 mm
Length:400 mm
Measurement Pressure Type:Gauge, Absolute
Memory:±9999999
Operating Pressure, Max:3000 psi
Operating Pressure, Min:0 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:10 °C
Pressure Accuracy:± 0.0033 %
Relative Humidity Note:5% RH to 95% RH non-condensing
Relative Humidity, Max:0.95
Relative Humidity, Min:5%
Response Time:2 times per second
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Power Note:90 V AC to 130 V AC @ 47 to 63 Hz & 180 V AC to 260 V AC @ 47 to 63 Hz. Universal input via IEC320 C14 Connector
Supply Voltage:90 to 130 Vac
Update Rate:8 times per second
Weight:5 kg
Width:88 mm
