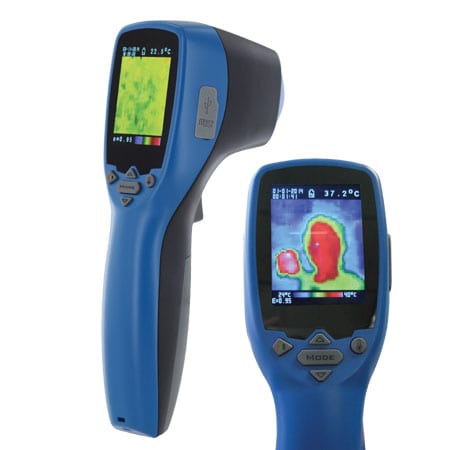

DwyerOmegaOSXL-TIM3-Series
OSXL-TIM3
High Value Thermal Imager Camera
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Additional Features 1:Thermal Imaging Camera, Focus free
Alarm:Yes
Applications:Air and HVAC, Building and Maintenance, Energy Generation and Distribution, Heat and Energy Systems, Insulation Inspection
Data Interface:USB
Display Size:71 mm (2.8 in)
Display Type:Color LCD
Emissivity Note:0.95 default; adjustable 0.1 to 1 step 0.1
Emissivity, Max:1
Emissivity, Min:0,1
Enclosure Ratings:IP54
Field of view:40° × 40°
Frame Rate:9 Hz
Height:233.68 mm
Image Storage:Stores up to 60,000 images/GB
Infrared Accuracy:± 2%
Infrared Accuracy Note:(Tamb=20~26°C) ± 2% of reading, or 2°C (4°F)whichever is greater
Infrared measurement, Max:250 °C
Infrared measurement, Min:-20 °C
Length:94.65 mm
Memory:8 GB
Memory Note:Supports 8G micro SD card (SD card included)
Spectral Response, Max:14 µm
Spectral Response, Min:8 µm
Thermal Image Resolution:32 × 31
Thermal Sensitivity:0.1 °C
Weight:411 g
Weight Note:411 g (14.5 oz) including batteries
Width:74.03 mm
