DwyerOmegaOSXL-TG165-series

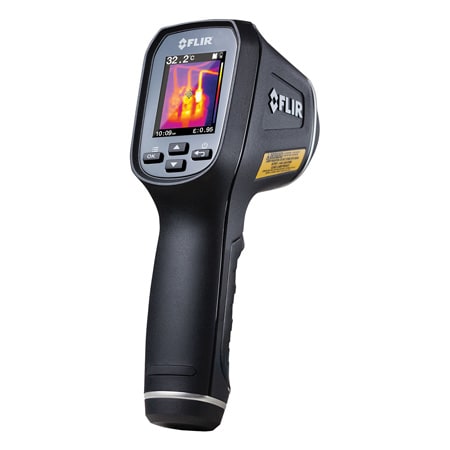

OSXL-TG165
Economical High Performance Thermal Imager
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Accuracy:± 1.5 °C (± 2.7 °F)
Accuracy Detail:± 1.5% or 1.5°C
Auto Power Off:Adjustable with disable
Battery life:8 hr, rechargeable
Color Palettes:2 (grey scale, hot iron)
Detector Type:Focal Plane Array (FPA) uncooled microbolometer
Display Resolution:38,720 pixels (176 x 220)
Display Type:LCD
Display Type Note:2.0" TFT LCD
Distance to Spot Ratio (D:S):1,000694444
Drop:2 m
Emissivity, Max:0,99
Emissivity, Min:0,1
Emissivity Note:4 pre-set levels with custom adjustment, 0.1 to 0.99
Field of view:50 x 38.6°
File Formats:BMP
Frame Rate:9 Hz
Height:186 mm
Image Resolution:4800 pixels
Image Resolution Note:4800 pixels (80 x 60)
Lasers:Dual diverging lasers, frames temperature measurement area
Length:94 mm
Measurement Resolution:0.1°C
Memory:8 GB
Memory Note:8 GB micro SD card
Object Temperature, Max:380 °C
Object Temperature, Min:-25 °C
Operating Temperature, Max:45 °C
Operating Temperature, Min:-10 °C
Response Time:150 ms
Series ID:OSXL-TG165-series
Shutter:Integrated automatic shutter
Spectral Response, Max:14 µm
Spectral Response, Min:8 µm
Thermal Imaging Sensitivity:150 mK
Tripod Mounting:1/4' - 20
Upper Scene Range:127°C
Upper Scene Range Note:127°C (260°F), 400K
Width:55 mm
