DwyerOmegaOSXL-EX
OSXL-E6-EUCAL

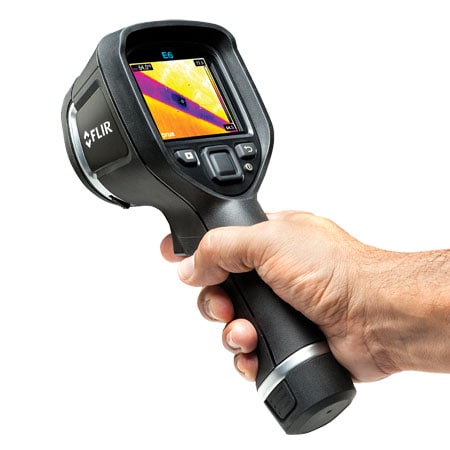

Compact Infrared Cameras - Thermal Imagers
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:± 2% or 2°C
Alarm:Blue below or red above set temperature
Battery life:4 hr
Color Palettes:Iron, rainbow, and gray
Detector Type:Focal Plane Array (FPA) uncooled microbolometer
Display Size:76 mm (3.0 in)
Display Size Note:76 mm (3.0"), 320 x 240 color LCD
Drop:2 m
Emissivity Note:Variable from 0.1 to 1.1
Emissivity, Max:1
Emissivity, Min:0,1
Field of view:45° x 34°
File Formats:JPEG
Focus:Focus-Free
Frame Rate:9 Hz
Height:244 mm
Image Modes:IR image, visual image, MSX, picture-in-picture, thumbnail gallery
Infrared Resolution:160 x 120 pixels
Length:140 mm
MSX Resolution:320 x 240
Multi-Spectral Dynamic Imaging (MSX):IR image with enhanced detail presentation
Object Temperature, Max:250 °C
Object Temperature, Min:-20 °C
Picture-in-Picture:IR area on visual image
ROI Measurement Modes:3 Modes
ROI Measurement Modes Note:3 modes: 1 spot (center); 1 area box (min/max); isotherm (above/below)
Set-up Commands:Date Format, Language, Time Format, Units
Storage Capacity:Internal memory store at least 500 sets of images
Storage Mode:Simultaneous storage of images in IR, visual and MSX
Thermal Sensitivity:<0.06 °C
Weight:0.58 kg
Width:95 mm
문서 및 매뉴얼
