DwyerOmegaOS36SM

OS36SM-K-50F

Name: OS36SM-K-50F
Brand: DwyerOmega
SKU: OS36SM-K-50F

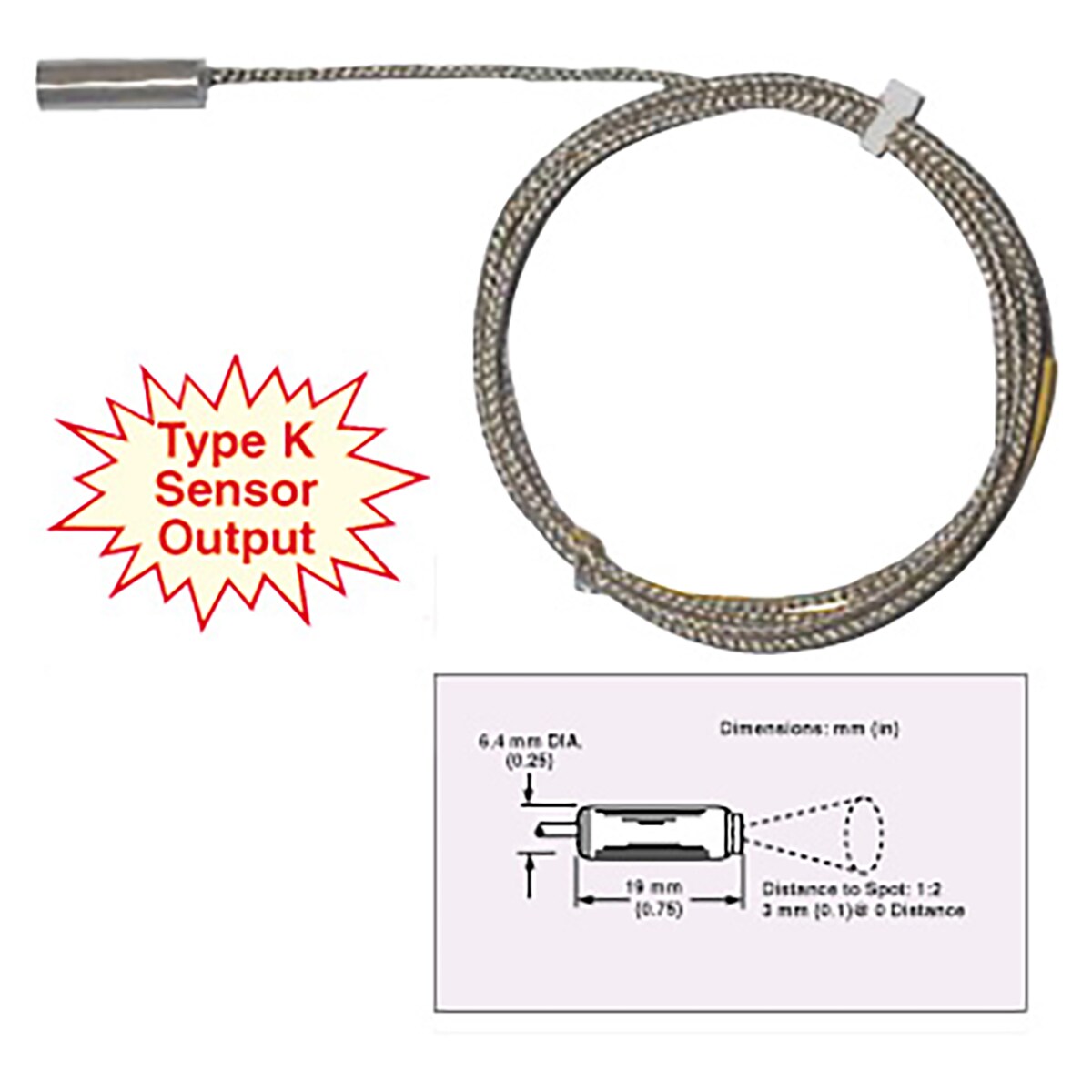

1:2 FOV , Type K, -18°C (0°F) to 30°C (85°F)

수량

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 1 %

Accuracy Detail:1% under calibration conditions

Cable Length:36 in

Cable Length Note:7 m (36") 30 AWG solid wire with glass braid insulation and tin/copper overbraid

Display:No

Emissivity Note:0.90 Fixed

Emissivity, Max:0.9

Field of View Note:1:2(distance:spot)

Field of view:1:2

Housing Material:300 Series Stainless Steel

Impedance:20 to 60 kΩ

Intrisically Safe:No

Laser Output:false

Operating Temperature, Max:85 °C

Operating Temperature, Min:-20 °C

Output Detail:Thermocouple Type K

Output Signal:Thermocouple

Process Temperature, Max:30 °C

Process Temperature, Min:-18 °C

Relative Humidity Note:Non-condensing

Response Time:150 ms

Spectral Response, Max:14 μm

Spectral Response, Min:6.5 μm

Spot Size:3 mm

Spot Size Note:3 mm(0.1") @ zero distance

Storage Temperature, Max:85 °C

Storage Temperature, Min:-20 °C

Weight:30 g

Weight Note:Approx 30 g (1 oz)
