DwyerOmegaOS212
OS212-MT

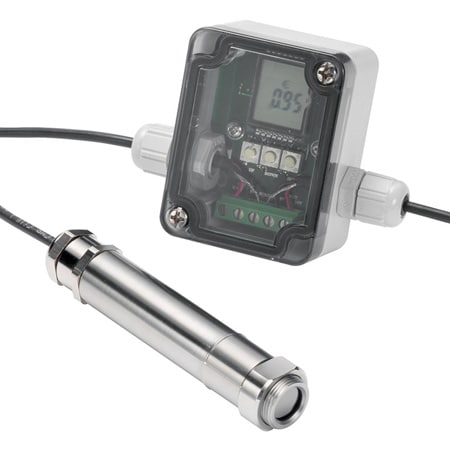

Fixed Infrared Non-Contact Temperature Sensor with adjustable emissivity and optional display
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:± 1% of reading or ± 1ºC whichever is greater
Cable Length:3.3 ft
Cable Length Note:1 m (3.3') (included) longer lengths available to order
Display:No
Emissivity Note:0.2 to 1.0 via 4 to 20 mA input
Emissivity, Max:1
Emissivity, Min:0.2
Enclosure Ratings:IP65
Field of view:2:1
Housing Material:Stainless Steel
Impedance:900 Ω
Operating Temperature, Max:70 °C
Operating Temperature, Min:0 °C
Output Signal:Current
Process Temperature, Max:250 °C
Process Temperature, Min:0 °C
Relative Humidity Note:95% max non-condensing
Relative Humidity, Max:0.95
Repeatability:± 0.5%
Repeatability Note:± 0.5% of reading or ± 0.5ºC whichever is greater
Response Time:240 ms
Response Time Note:240 mS (90% response)
Sensing head Mounting:16 mm
Sensor Voltage:6 Vdc
Spectral Response, Max:14 μm
Spectral Response, Min:8 μm
Supply Voltage:24 to 28 Vdc
Temperature Range:MT-Medium
Weight:95 g
Weight Note:95 g (3.4 oz) with cable
