DwyerOmegaOS130A-Series

OS136A-1-V2

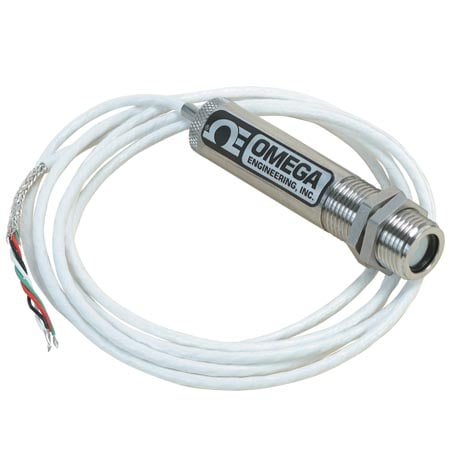

6 ft, 0 to 10 Vdc ouput , Miniature Non-Contact Infrared Temperature Sensor/Transmitter

가격: 614,670 원

VAT 10%: 61,467 원

총 금액: 676,137 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Alarm Setpoint:Adjustable, 0 to 100%

Cable Length:6 ft

Electrical Output:0 to 10 V

Emissivity Note:Fixed at 0.95

Emissivity, Max:0.95

Emissivity, Min:0.5

Enclosure Ratings:IP66, NEMA Type 4

Field of View Note:6 to 1 (distance to spot size)

Field of view:6:1

Housing Length:89 mm

Housing Material:316 Stainless Steel

Housing Material Note:316 SS, NEMA 4 (IP66) rated

Housing Outer Diameter:19 mm

Laser Power:<1 mW

Laser Wavelength Color:630 to 670 nm

Operating Distance, Max:9.1 m

Operating Temperature, Max:70 °C

Operating Temperature, Min:0 °C

Output Detail:0 to 10Vdc

Output Signal:Voltage

Process Temperature, Max:202 °C

Process Temperature, Min:-18 °C

Relative Humidity Note:Less than 95% RH, non-condensing

Relative Humidity, Max:0.95

Repeatability:0.01

Repeatability Note:1% of rdg

Response Time:150 ms

Response Time Note:150 msec, 0 to 63% of final value

Spectral Response, Max:14 μm

Spectral Response, Min:5 μm

Supply Current:50 mA

Supply Voltage:12 to 24 Vdc

Thermal shock:About 30 minutes for 25°C abrupt ambient temperature change

Warm-Up Period, Max:2 m

Warm-Up Period, Min:1 m

Weight:181 g
