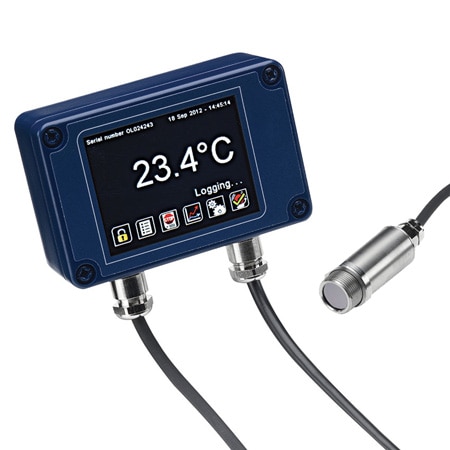

DwyerOmegaOS-MINI-Series
OS-MINIUSB-SN201
USB, 20:1, IR Sensor
- 가격
- 638,650 원
- VAT 10%
- 63,865 원
- 총 금액
- 702,515 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy Detail:± 1% of reading or ± 1ºC whichever is greater
Approvals:RoHS
Baud Rate:9600
Cable Length:1.5 m
Configuration:Via USB using included software or Modbus
Configuration Parameters:Averaging, Emissivity Setting, Reflected Energy Compensation
Current Draw:None
Data Format:8 data bits:no parity:1 stop bit
Data Interface:USB
Display:No
Display Size:N/A
EMC Standard:EN61326-1, EN61326-2-4
Emissivity Setting Method:None
Emissivity, Min:0.2
Field of view:20:1
Operating Temperature, Max:75 °C
Operating Temperature, Min:0 °C
Output Signal:USB
Process Temperature, Max:1000 °C
Process Temperature, Min:-20 °C
Protocol:Modbus
Relative Humidity Note:95% max, non-condensing
Relative Humidity, Max:0.95
Repeatability Note:± 0.5% of reading or ± 0.5ºC whichever is greater
Response Time:125 ms
Response Time Note:t90 125 ms (90% response
Sensing head Material:Stainless Steel
Spectral Response, Max:14 μm
Spectral Response, Min:8 μm
Supply Current:50 mA
Supply Power Note:5 Vdc (provided by USB)
Supply Voltage:5 Vdc
Weight:85 g
