DwyerOmegaOSHFV-Series

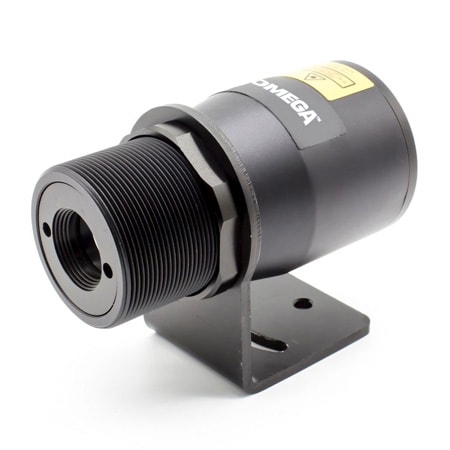

OS-HFV50-601-LT

60:1 FOV, 0°C to 900°C

가격: 1,628,540 원

VAT 10%: 162,854 원

총 금액: 1,791,394 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Additional Features 1:Simultaneous analog and digital outputs

Cable Length:3 m

Cable Length Note:3 m (standard, 4-cores), 5 m/10 m

Current Draw:100 mA

Data Interface:USB

Emissivity Note:0.100 to 1.000, in 0.001 increments

Emissivity, Max:1

Emissivity, Min:0.1

Enclosure Ratings:IP64

Field of view:60:1

Intrisically Safe:No

Loop Resistance, Max:500 Ω

Operating Temperature, Max:70 °C

Operating Temperature, Min:0 °C

Output Signal:Current

Process Temperature, Max:900 °C

Process Temperature, Min:0 °C

Relative Humidity Note:10 to 95%, non-condensing

Relative Humidity, Max:95%

Relative Humidity, Min:10%

Repeatability:± 0.5% of reading or ± 1°C

Response Time:150 ms

Response Time Note:150 ms ((95% signal))

Sensor Diameter:59.5 mm

Sensor Length:110 mm

Spectral Response, Max:14 μm

Statistics:Average, Peak Hold, Valley Hold

Storage Temperature, Max:80 °C

Storage Temperature, Min:-20 °C

Supply Power Note:24 VDC ± 20%

Supply Voltage:24 Vdc

Temperature Resolution:0.1 °C

Weight:500 g

Weight Note:500g (without cable)
